- Optical System
- Light source: 1PC 189W OSRAM projection lamp
- Colour temperature: 8500K
- LED lifespan: 2000 hours
- Beam angle: 3.8°
- Luminaire: 43670LM at 20 meters(full power output)
- Dynamic Effects
- Colour wheel: 14 colors + white
- Fixed gobo wheel: 17 fixed gobos + open
- Prism: A rotating 8-facet prism
- Frost
- Bi-directional rainbow effect,speed adjustable
- Motor focus from near to far
- 0-100% electronic dimmer
- Shutter: Random / dimming pulse
- Control and Program

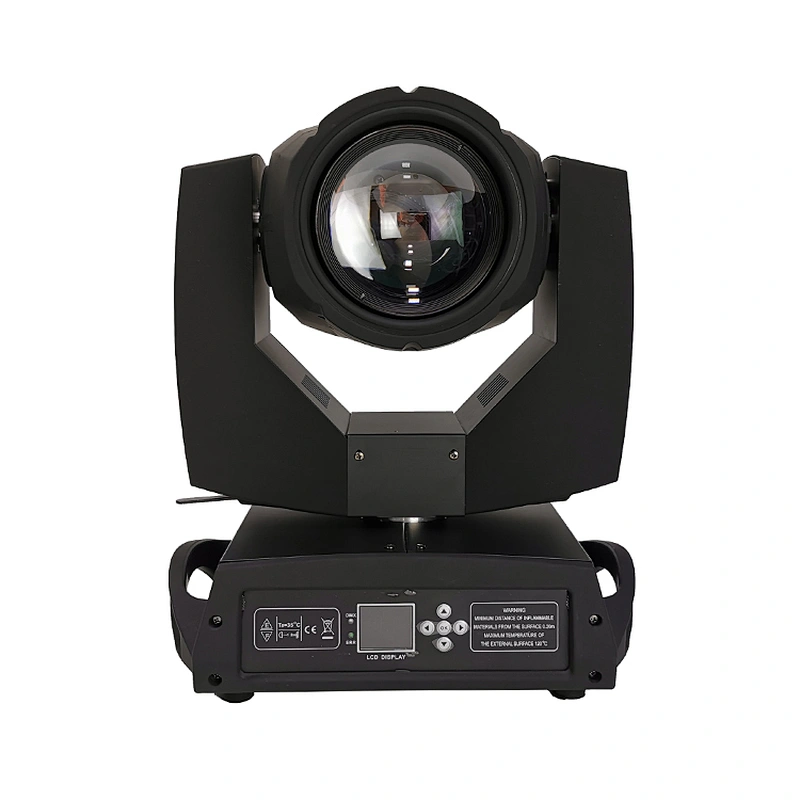

- Colorful LCD display, programmable
- Protocol: DMX512, master-slave, sound control, auto
- Control channels: 16 CH
- Pan/Tilt resolution: 16 bit smooth scanning
- Movement
- Pan movement: 540°
- Tilt movement: 270°
- Scanning position memory
- Automatic Pan/Tilt position correction
- Electrical Specification and Connections
- Power supply: Electronic ballasts and switching
- Input voltage: AC 100-240 V, 50/60 Hz
- Power consumption: 350 W

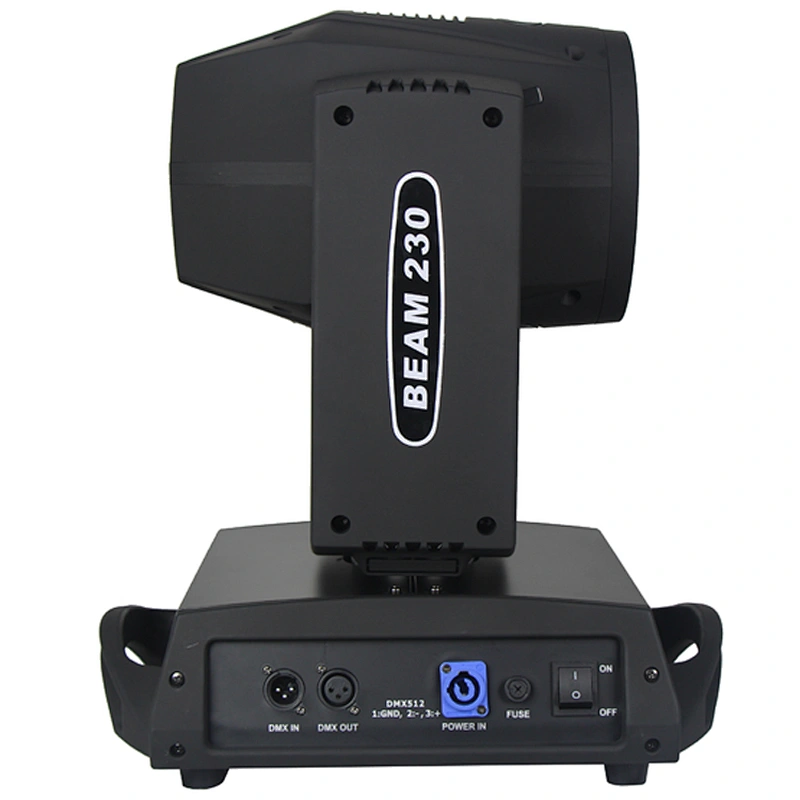

- Power connector in/out: Powercon input
- Data connector in/out: 3-pin XLR
- 2pcs 1/4 fast locking
- Working Environment
- Ambient temperature: -20℃ ~ +45℃ (-4℉ ~ +113℉)
- Protection grade: IP20
- Approvals
- CE & RoHS
- If any other certificates are required, confirm with us please
- Product and Packing Dimensions
- Product: 400*330*485 mm (15.7*13*19 inch)
- Carton: 440*410*540 mm (17.3*16.1*21.3 inch)
- Net weight: 18 kg (39.7 lbs)
- Gross weight: 19.5 kg (43 lbs)
- Packing List
- BEAM 200
- User manual
- Power cable
- 3-pin XLR connectors
- Optional Accessories
- Flight case: 2pcs in 1
- Clamp
- Safety rope
- DMX wire
