- Optical System

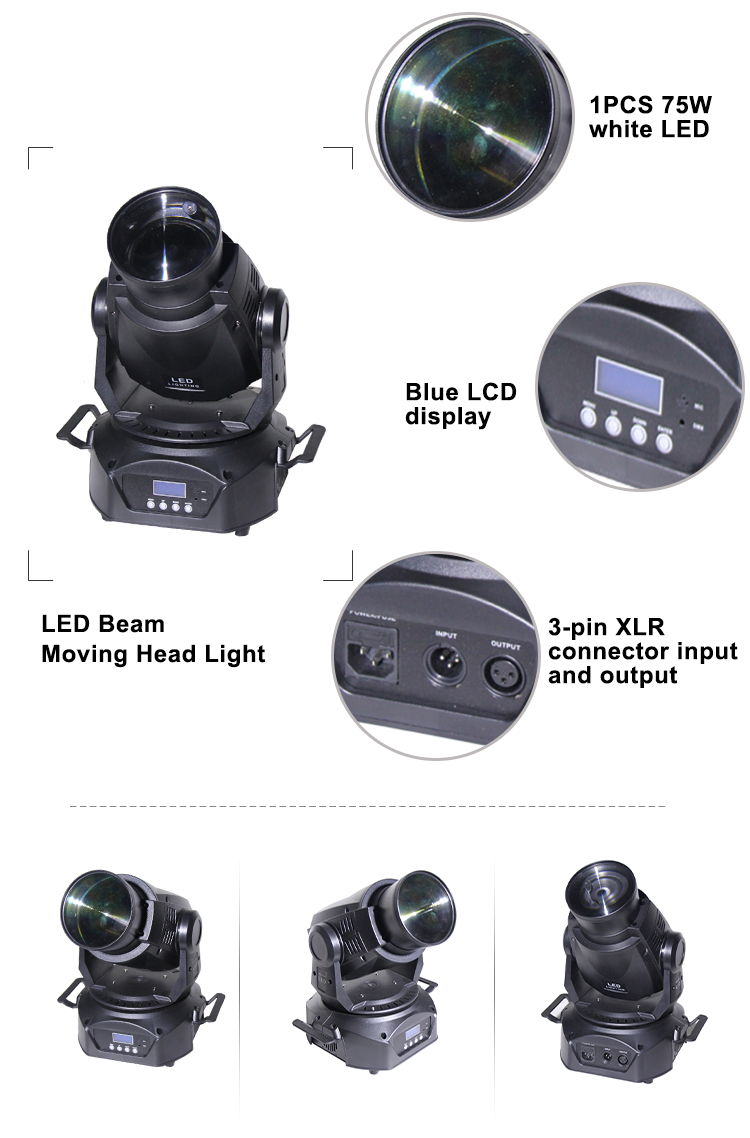

- Light source: 1PC 75W white LED
- LED lifespan: 50,000 hours
- Beam angle: 4°
- Dynamic Effects
- Colour wheel: 7 color + white
- Fixed gobo wheel: 8 fixed gobo + white
- A rotating 3-facet prism
- Bi-directional rainbow effect, speed adjustable
- 0-100%electronic dimming
- Shutter:18 time/scond high-speed strobe, with random and pulse strobe
- Control and Program
- Blue LCD display
- Protocol: DMX512, master-slave, sound control, auto
- Control channels: 9/11 CH
- Pan/Tilt resolution: 16 bit smooth scanning
- Movement
- Pan movement: 540°
- Tilt movement: 270°
- Scanning position memory
- Automatic Pan/Tilt position automatic correction
- DB rate: 55db(3”)
- Electrical Specification and Connections
- Power supply: Electronic auto-ranging
- Input voltage: AC 100-240 V, 50/60 Hz
- Power consumption: 135 W
- Power connector in/out: IEC
- Data connector in/out: 3-pin XLR
- Working Environment
- Ambient temperature: -20℃ ~ +45℃ (-4℉ ~ +113℉)
- Protection grade: IP33
- Approvals
- CE & RoHS
- If any other certificates are required, confirm with us please
- Product and Packing Dimensions
- Product:320*280*415 mm (12.6*11*16.3 inch)
- Carton:370(L)*325(W)*400(H) mm (14.6*12.8*15.7 inch)
- Net weight: 6.5 kg (14.3 lbs)
- Gross weight: 7.5 kg (16.5 lbs)
- Packing List

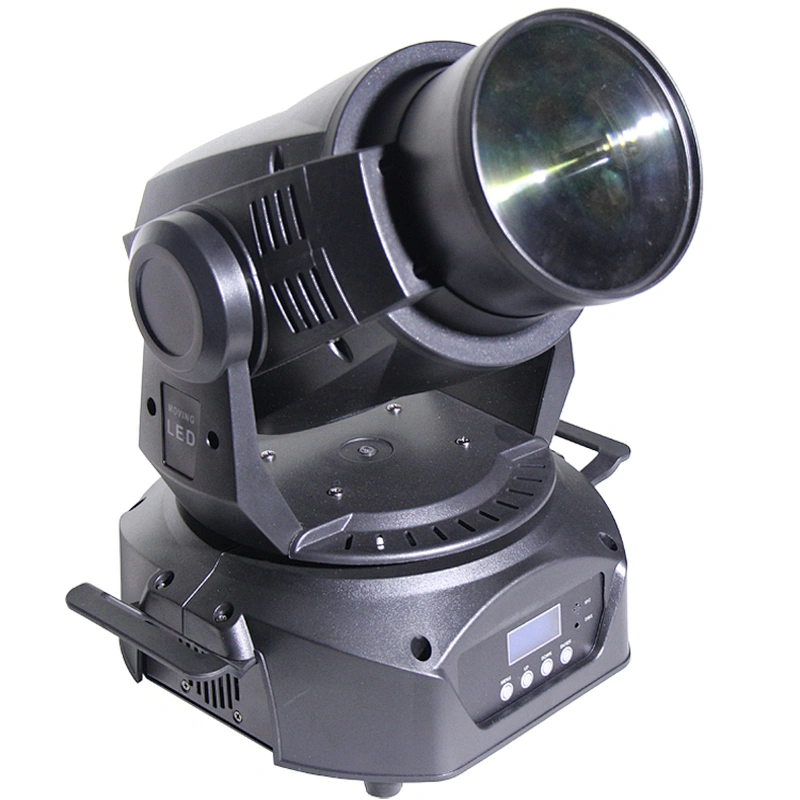

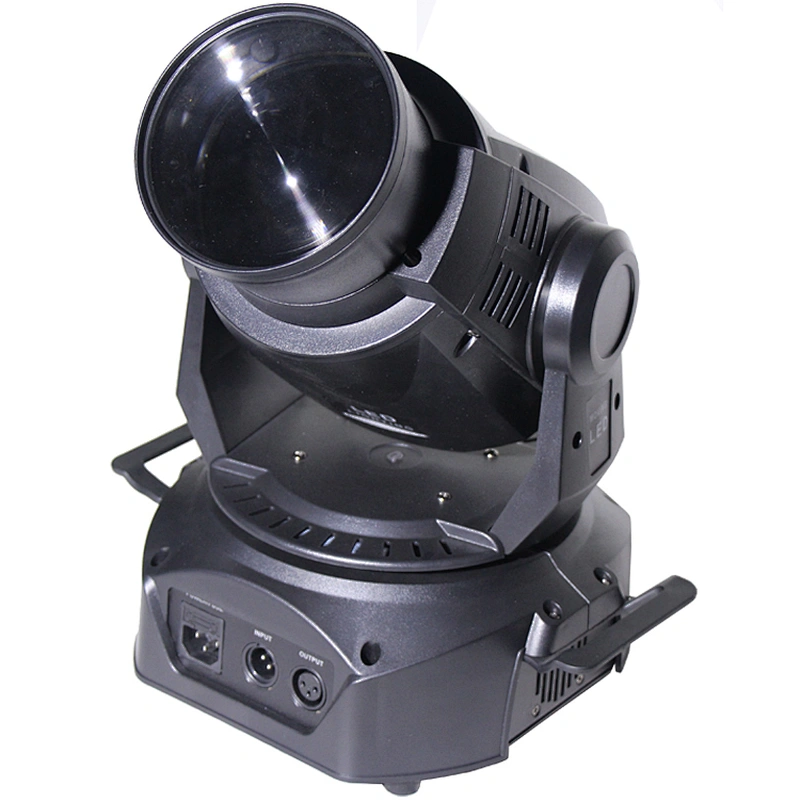

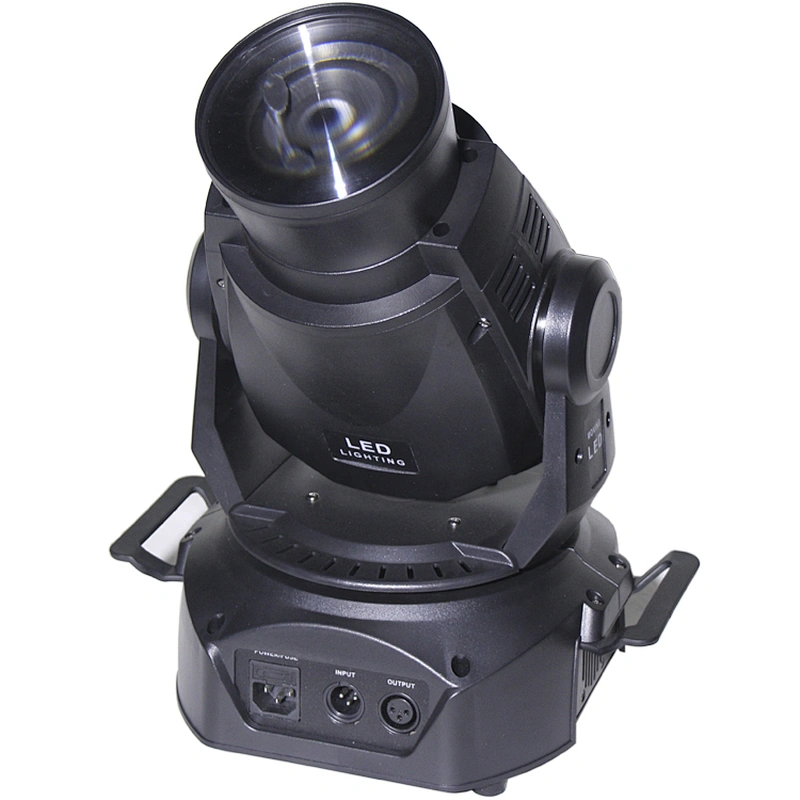

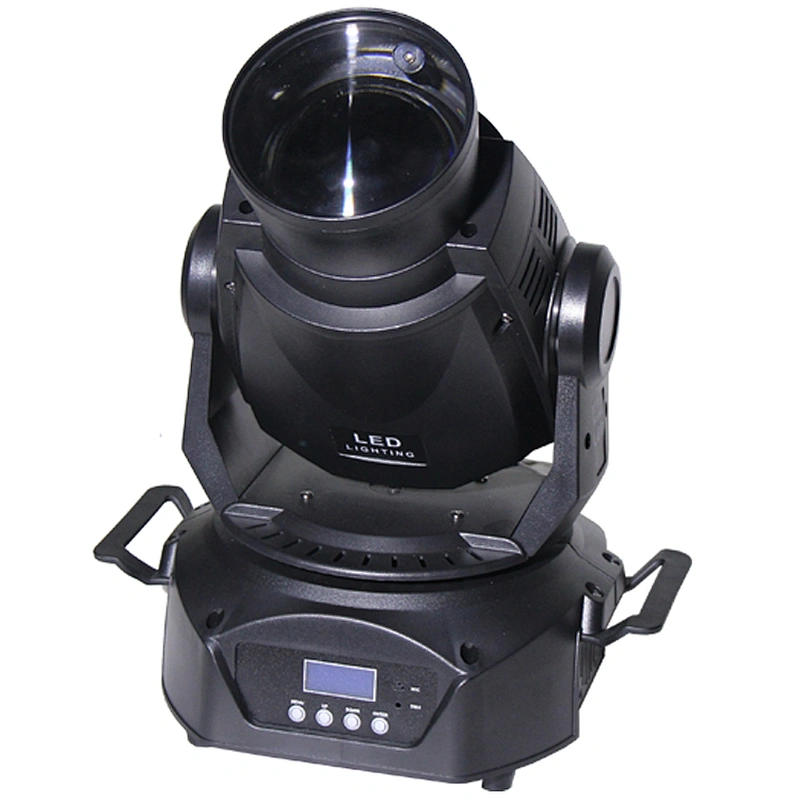

- LEDBEAM 75
- User manual
- Power cable
- 3-pin XLR connectors
- Optional Accessories
- Flight case: 4pcs in 1
- Clamp
- Safety rope
- DMX wire
