- Optional Models
| Model NO. | Power Consumption | Light Source | Emitting Color | Zoom Angle | DMX Channels |
| SL-2022A | 200W | 18*10W | 4IN1 | 10°-60° | 5/9CH |
| SL-2022B | 270W | 18*15W | 5IN1 | 10°-60° | 6/10CH |
| SL-2022C | 324W | 18*18W | 6IN1 | 10°-60° | 7/11CH |
- Optical System
- Light source: 18pcs 10W LED
- LED lifespan: min. 50,000 - 80,000 hours
- Dynamic Effects
- LED rainbow effect
- 0-100% smooth linear dimming system
- Shutter: 1-18 times/sec high speed strobe, speed adjustable
- With random strobe and pulse effect
- Zoom angle: 10°--60°
- Control and Program
- LED display
- Protocol: DMX512, master-slave, sound control, auto
- Built-in pre-programs
- Marco function
- Electrical Specification and Connections
- Power supply: electronic auto-ranging
- Input voltage: AC 90-240V, 50-60Hz

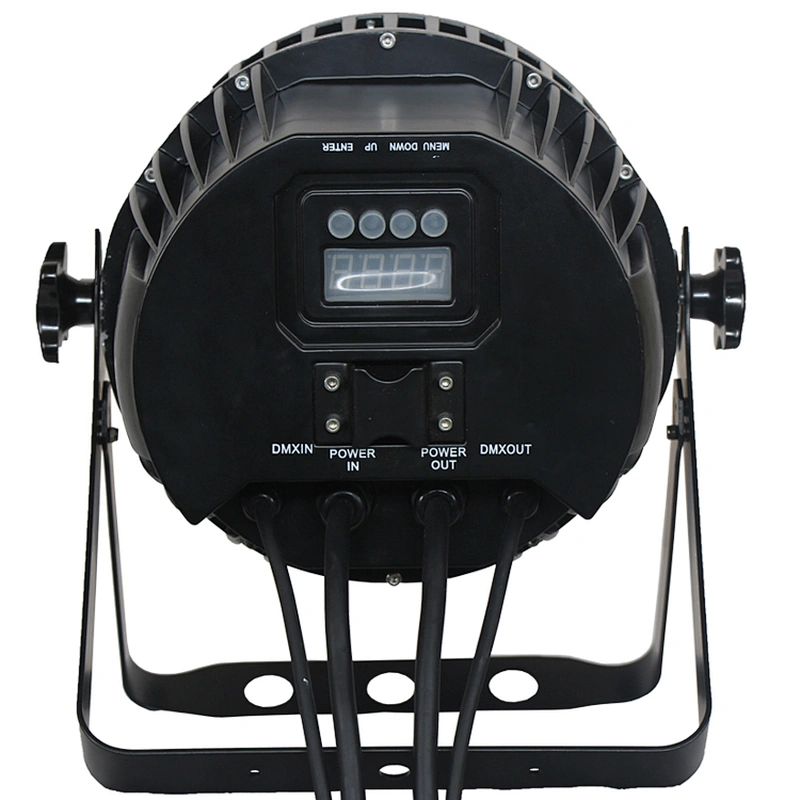

- Power connector in/out: waterproof power plug
- Data connector in/out: wasterproof 3-pin XLR
- Working Environment
- Ambient temperature: -20℃ ~ +45℃ (-4℉ ~ +113℉)
- Protection grade: IP65
- Approvals
- CE & RoHS
- If any other certificates are required, confirm with us please
- Product and Packing Dimensions
- Product: 310*270*320mm (12.2*10.6*12.6inch)
- Carton: 310*310*385 mm (12.2*12.2*15.2 inch)
- Net weight: 9.8 kg (21.6lbs)
- Gross weight: 11.5 kg ( 25.4lbs)
- Die-cast Aluminum housing and metal base
- Packing List
- LEDPAR ZOOM 180
- User manual
- Waterproof power cable
- Waterprof 3-pin XLR wire
- Optional Accessories
- Flight case
- Clamp
- Safety rope
- Extensional DMX wire
