• Optional Models

• Optical System

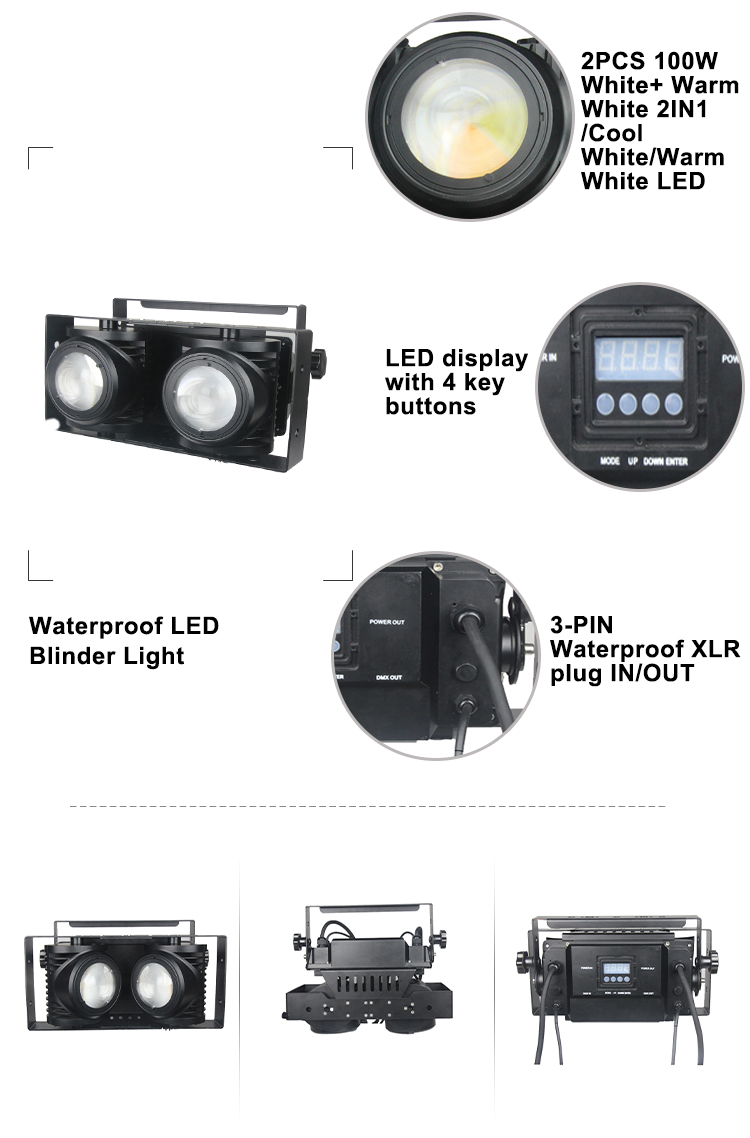

1. Light source: 2pcs 100W LED
2. LED lifespan: min. 50,000 - 80,000 hours
3. Color Rendering Index(CRI): Ra≥90
4. 1060LUX, 5 meters
5. field angle: 8° or 100°

• Dynamic Effects

1. 0-100% smooth linear dimming system
2. Shutter: 1-25 times/sec high speed strobe, speed adjustable
3. With random strobe and pulse effect
4. Each COB module is individually controlled

• Control and Program

1. Protocol: DMX512, master-slave, sound control, auto
2. Built-in pre-programs
3. Marco function

• Electrical Specification and Connections

1. Power supply: electronic auto-ranging
2. Input voltage: AC90-240 V, 50-60 Hz

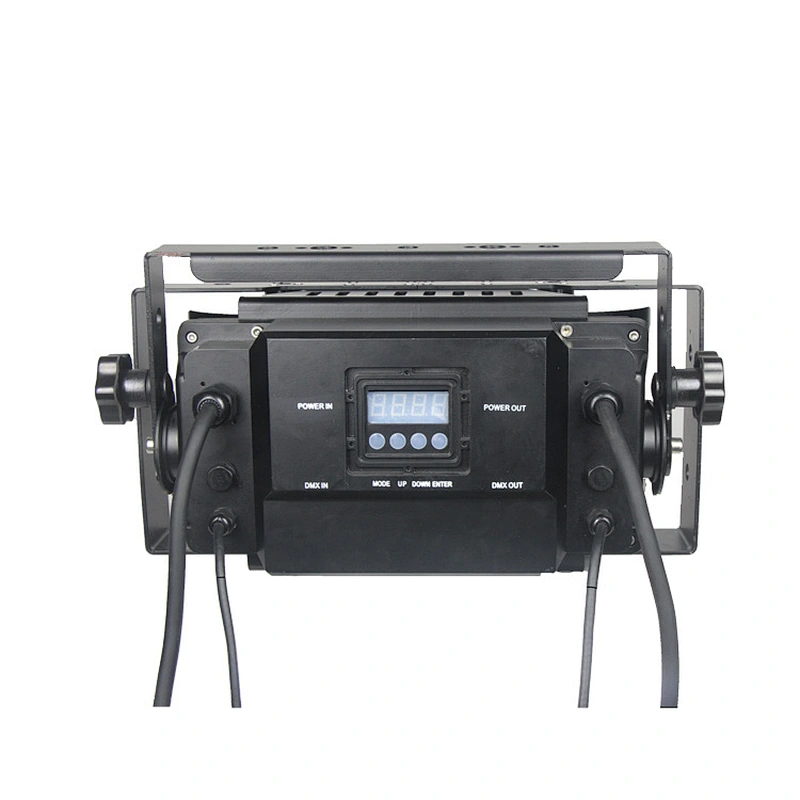

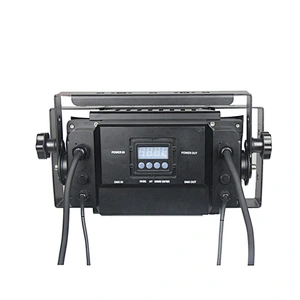

3. Power connector in/out: waterproof power plug
4. Data connector in/out: wasterproof 3-pin XLR

• Working Environment

1. Ambient temperature: -20℃ ~ +45℃ (-4℉ ~ +113℉)
2. Protection grade: IP65

• Approvals

1. CE & RoHS
2. If any other certificates are required, confirm with us please

• Product and Packing Dimensions

1. Product: **mm (**inch)
2. Carton: **mm (** inch)
3. Net weight: 10 kg ( 22lbs)
4. Gross weight:11 kg (24.3 lbs)
5. Carton :（2-in-1）**mm (** inch) 22KG (48.5 lbs)
6. Die-castAluminum housing and metal base

• Packing List

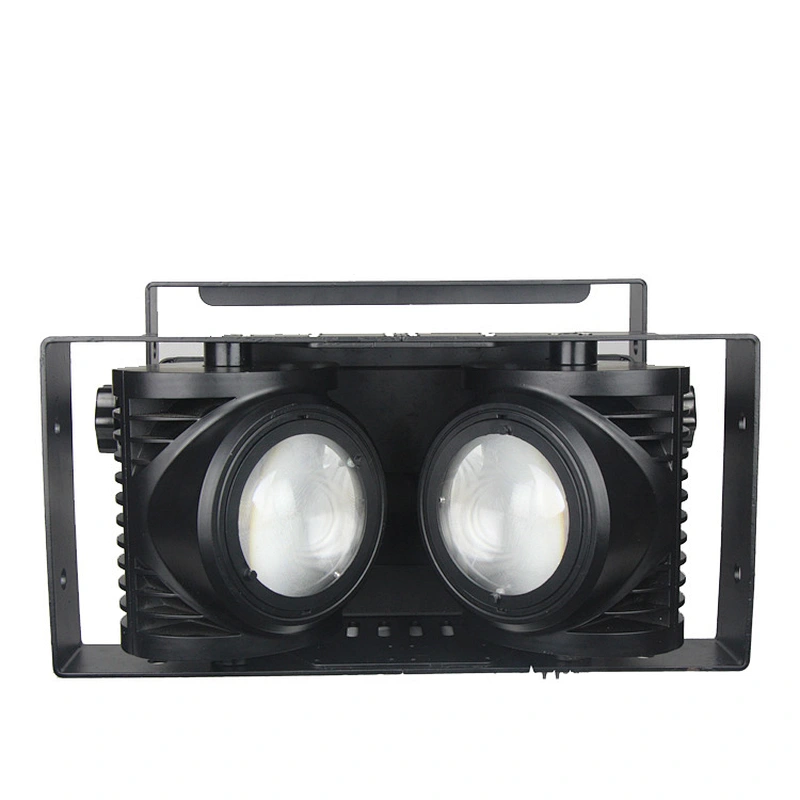

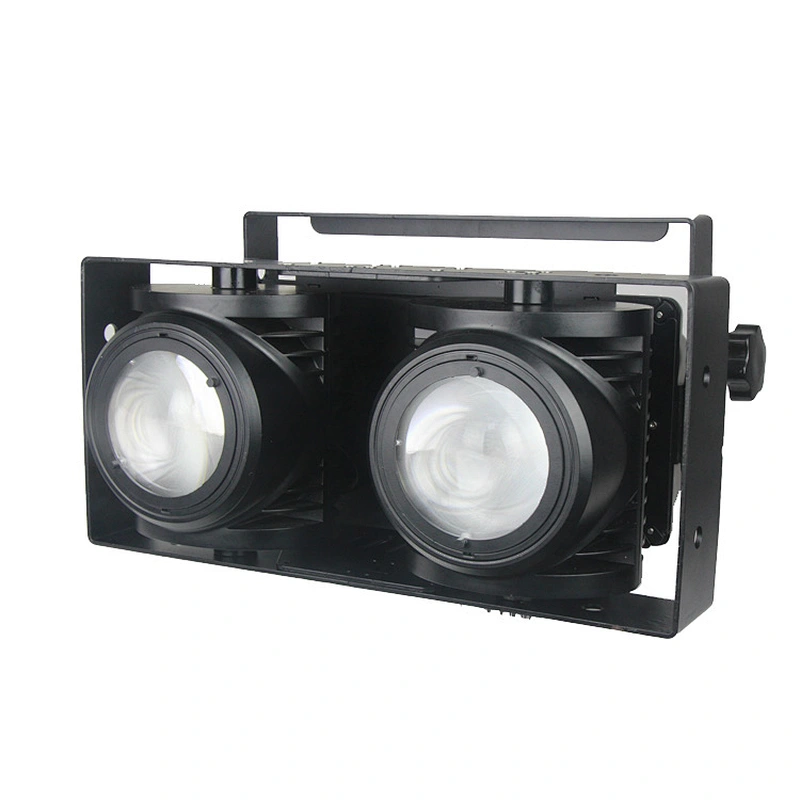

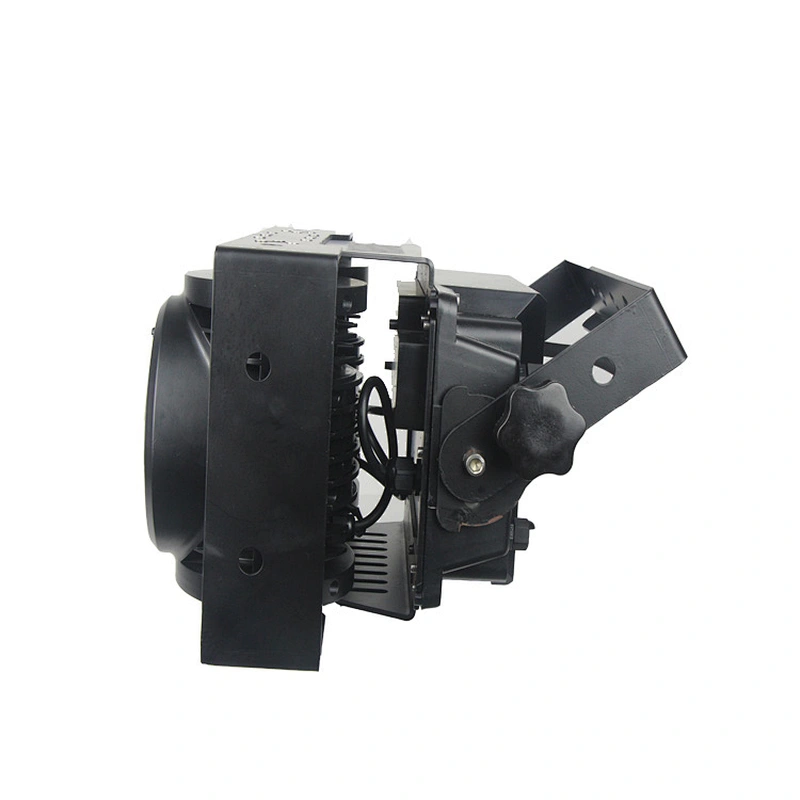

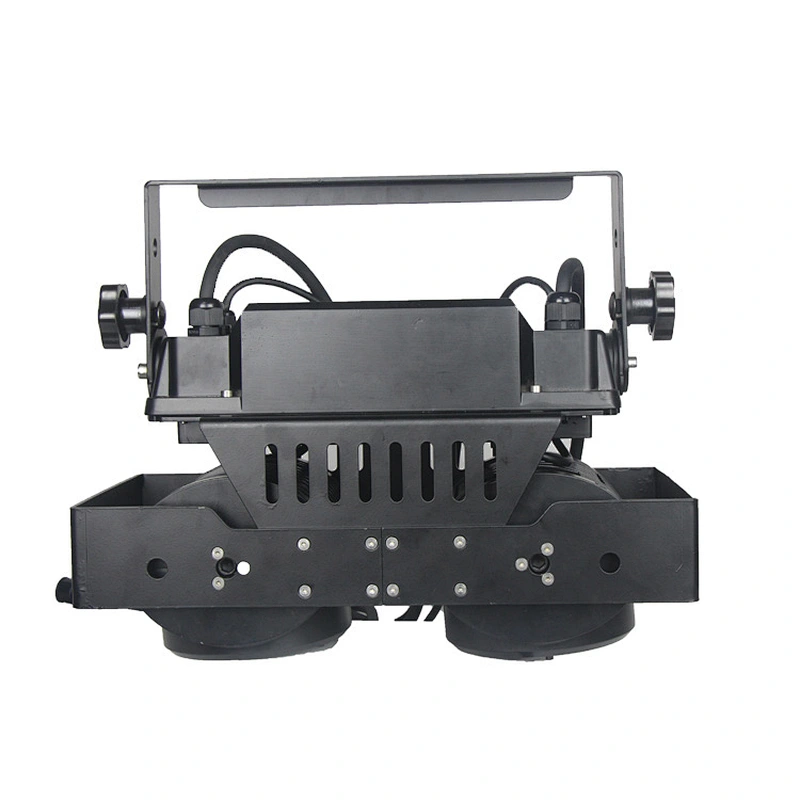

1. LED BLINDER 200
2. User manual
3. Waterproof power cable
4. Waterprof 3-pin XLR wire

• Optional Accessories

1. Flight case
2. Clamp
3. Safety rope
4. Extensional DMX wire

、
