- Optional Models
| Model NO. | Power Consumption | Light Source | Emitting Color | Lens Angle | Lens Optional | DMX Channels | Length |
| SL-2007D18 3W25D3IN1 | 54W | 18*3W | 3in1 | 25° | 15°, 45°, 60° | 3/7CH | 1000mm |
| SL-2007D24 3W25D3IN1 | 72W | 24*3W | 3in1 | 25° | 15°, 45°, 60° | 3/7CH | 1000mm |
- Optical System
- Light source: 18/24pcs 3W LED
- LED lifespan: min. 50,000 - 80,000 hours
- Lens angle: 25°
- Dynamic Effects
- LED rainbow effect
- LED shutter effect
- 0-100% smooth linear dimming system
- Control and Program
- Protocol: DMX512, master-slave, sound control, auto
- Built-in pre-programs
- Marco function
- Electrical Specification and Connections
- Power supply: electronic auto-ranging
- Input voltage: AC90-240 V, 50-60 Hz
- Power connector in/out: waterproof power plug
- Data connector in/out: wasterproof 3-pin XLR
- Working Environment
- Ambient temperature: -20℃ ~ +45℃ (-4℉ ~ +113℉)
- Protection grade: IP65
- Approvals
- CE & RoHS
- If any other certificates are required, confirm with us please
- Product and Packing Dimensions
- Product: 1000*80*120mm (**inch)
- Carton: 1050*130*150mm (** inch)
- Net weight: 3.6 kg ( 8.4lbs)
- Gross weight:4.1 kg ( 9.3lbs)
- Carton (6pcs-in-1): 1070*430*330mm, 27kg (** inch, lbs)
- Aluminum housing
- Packing List

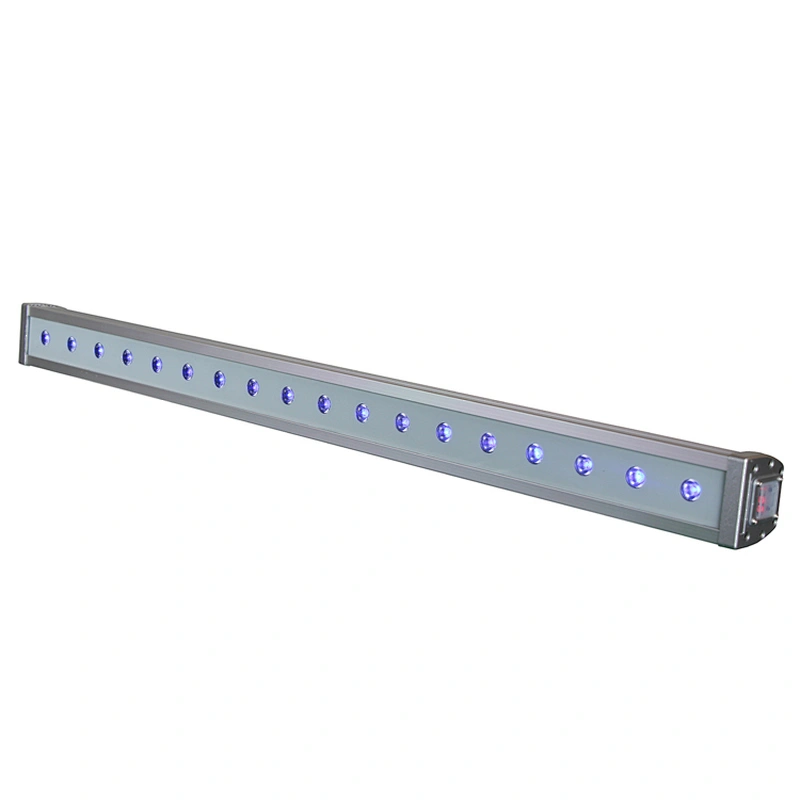

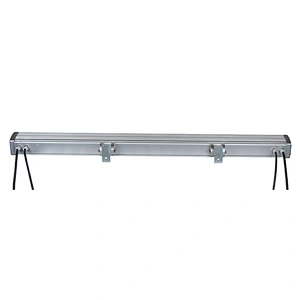

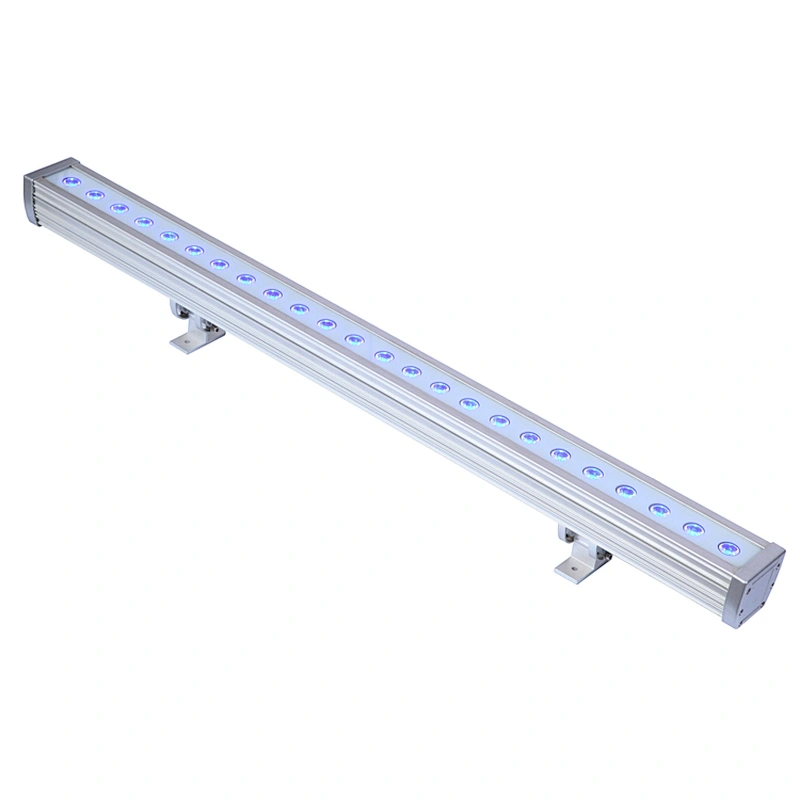

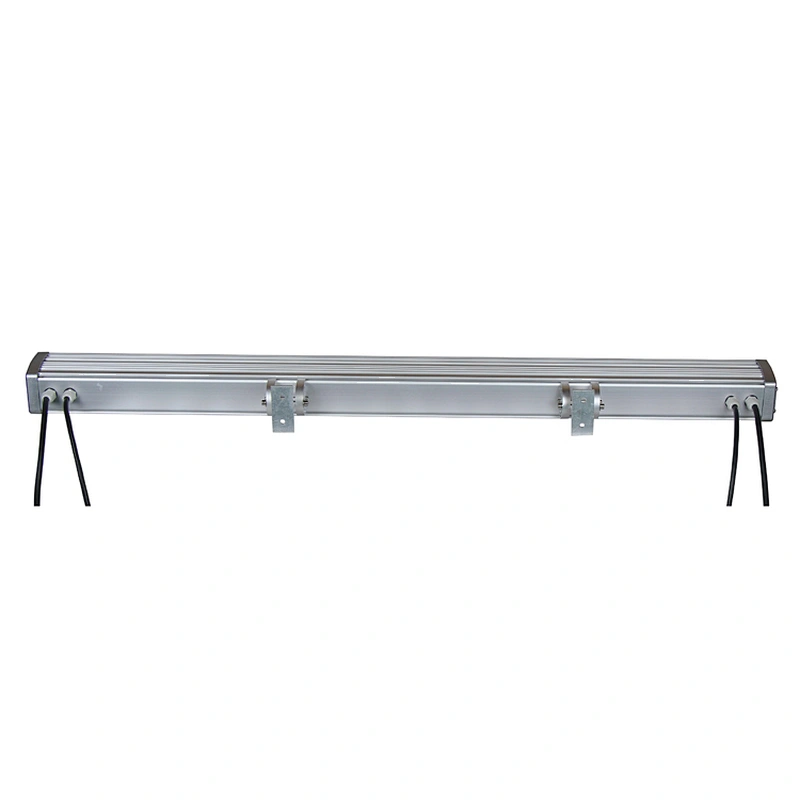

- LED WALL WASHER 183
- User manual
- Waterproof power cable
- Waterprof 3-pin XLR wire
