English
- Optical System

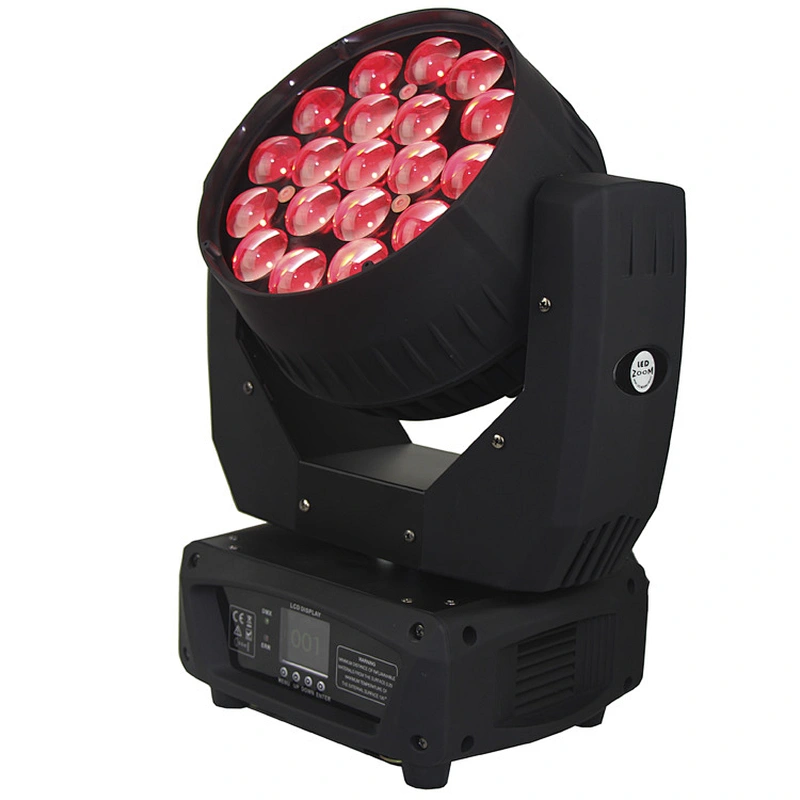

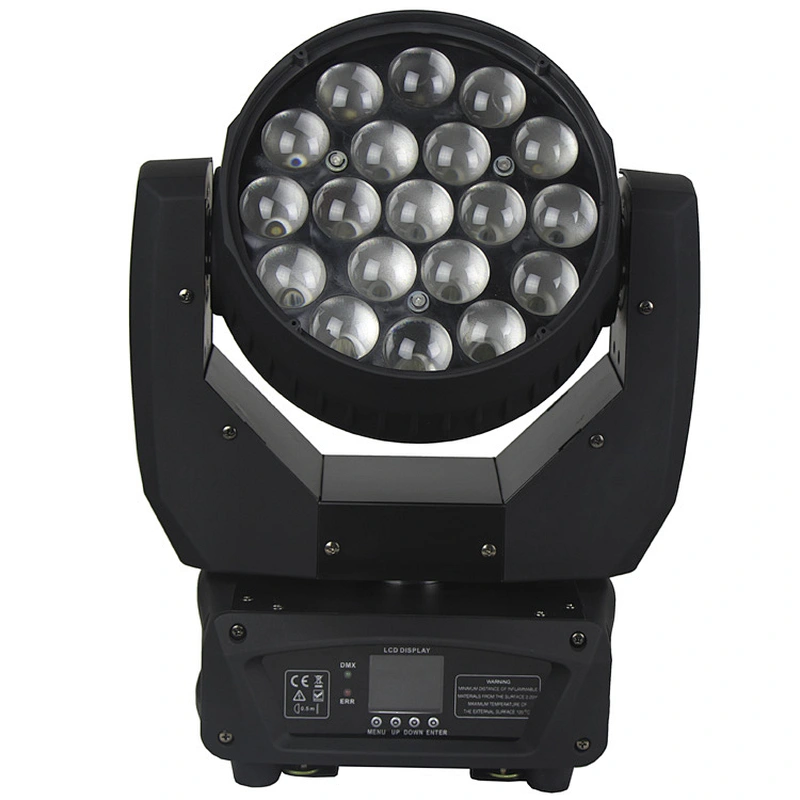

- Light source: 19PCS OSRAM 15W 4in1 LED
- LED lifespan: 50,000 hours
- Zoom range: 10° - 60°
- Illuminance: full power output is 3540LUME(10°) and 550LUME (60°) at 5meters
- Dynamic Effects
- Pixel control:LED lamp divided into three circles, each circle individually controllable

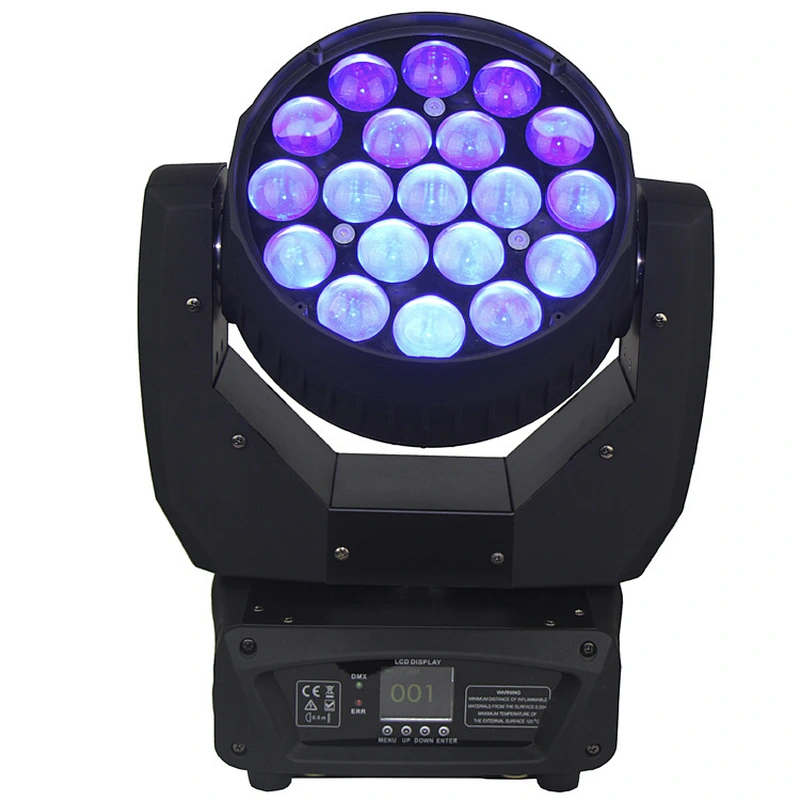

- RGBW color mixing
- Mixing color Smooth, uniform
- Built macro function
- LED rainbow effect
- 0-100% electronic dimmer
- Shutter: 1-25 times/s strobe, plus strobe
- Control and Program
- Color LCDdisplaywith Chanese and English menu
- Protocol: DMX512, master-slave, sound control, auto
- Control channels: 14/22 CH
- Pan/Tilt resolution: 16 bit smooth scanning
- Movement
- Pan movement: 540°
- Tilt movement: 270°
- Scanning position memory
- Automatic Pan/Tilt position correction
- Electrical Specification and Connections
- Power supply: Electronic ballasts and switching
- Input voltage: AC100-240V,50/60 Hz
- Power consumption: 300W

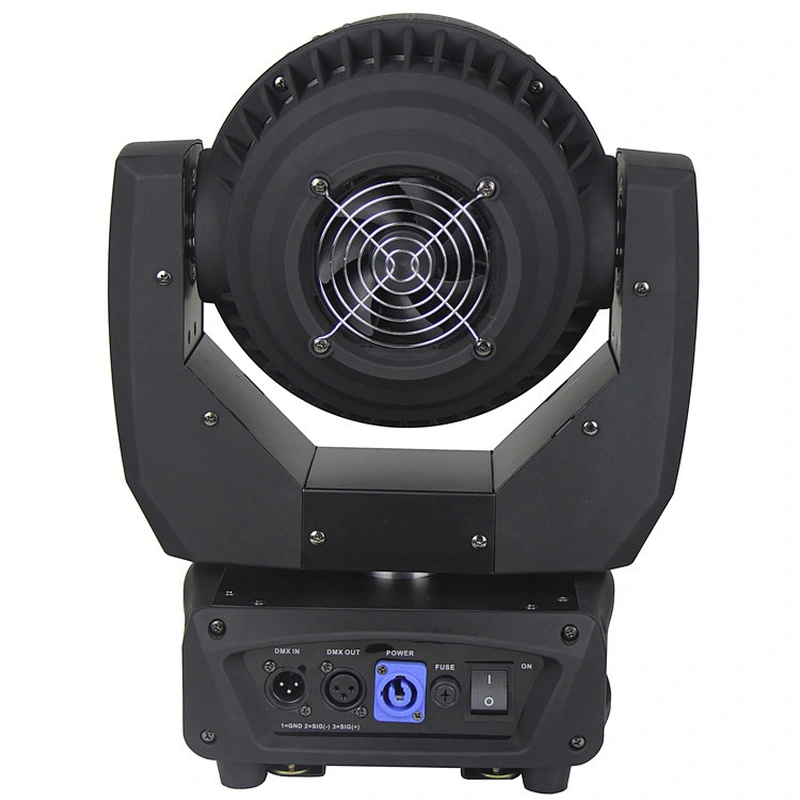

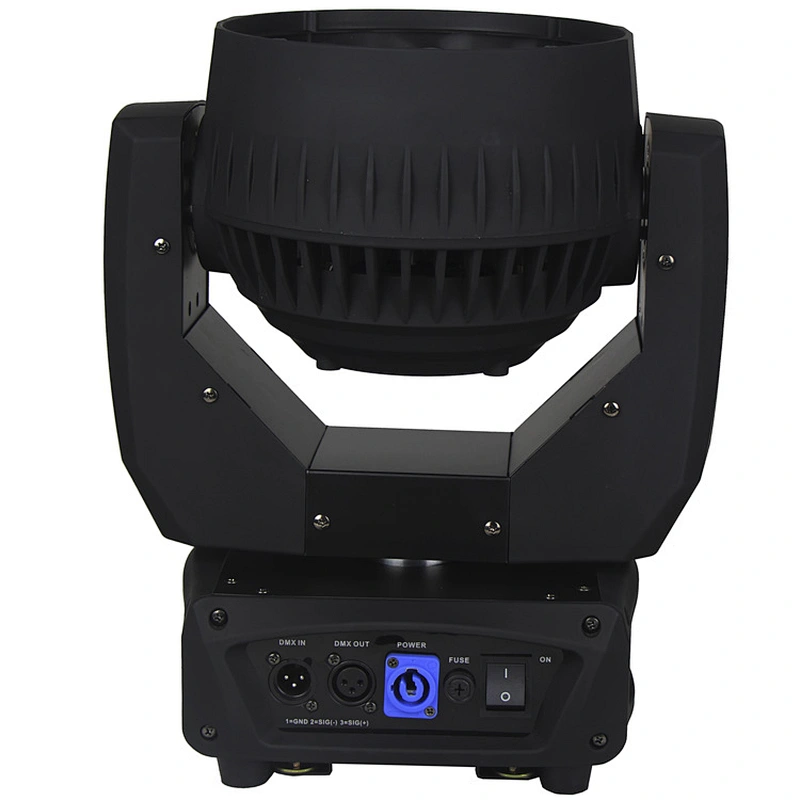

- Power connector in/out: Powercon
- Data connector in/out: 3-pin XLR
- 2 pcs 1/4 fast locking
- Working Environment
- Ambient temperature: -20℃ ~ +45℃ (-4℉ ~ +113℉)
- Protection grade: IP33
- Approvals
- CE & RoHS
- If any other certificates are required, confirm with us please
- Product and Packing Dimensions
- Product: 300*210*390mm (11.8*8.3*15.4 inch)
- Carton: 450*260*390mm (17.7*10.2*15.4 inch)
- Net weight: 8 kg (17.6 lbs)
- Gross weight: 10 kg (22 lbs)
- Packing List
- LEDZOOM 1915-3
- User manual
- Power cable
- 3-pin XLR connectors
- Optional Accessories
- Flight case： 2pcs in 1
- Clamp
- Safety rope
- DMX wire
