- Optical System

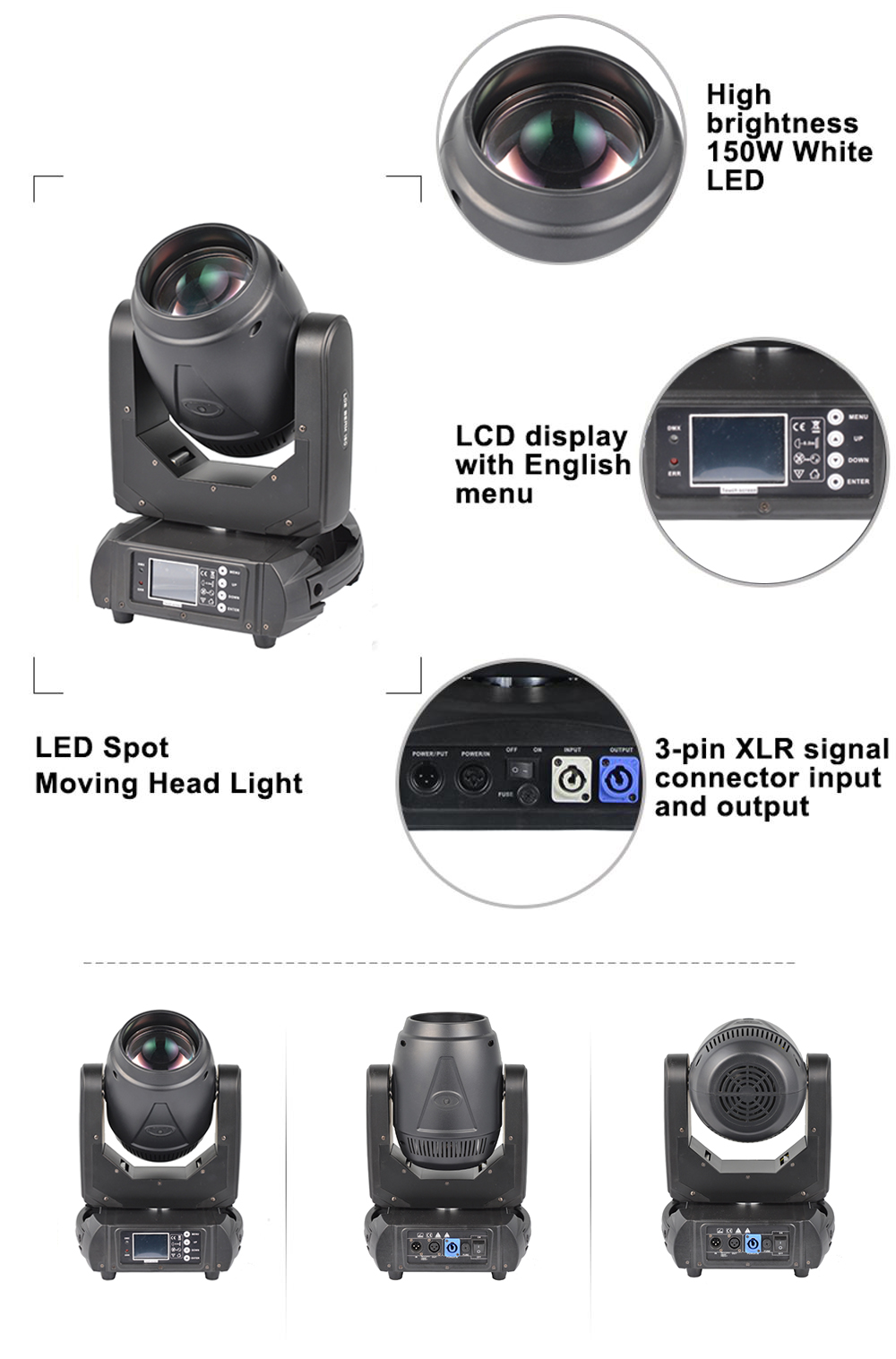

- Light source: 1PC 150W white LED
- LED lifespan: 50,000 hours
- Beam angle：2.4°
- Dynamic Effects

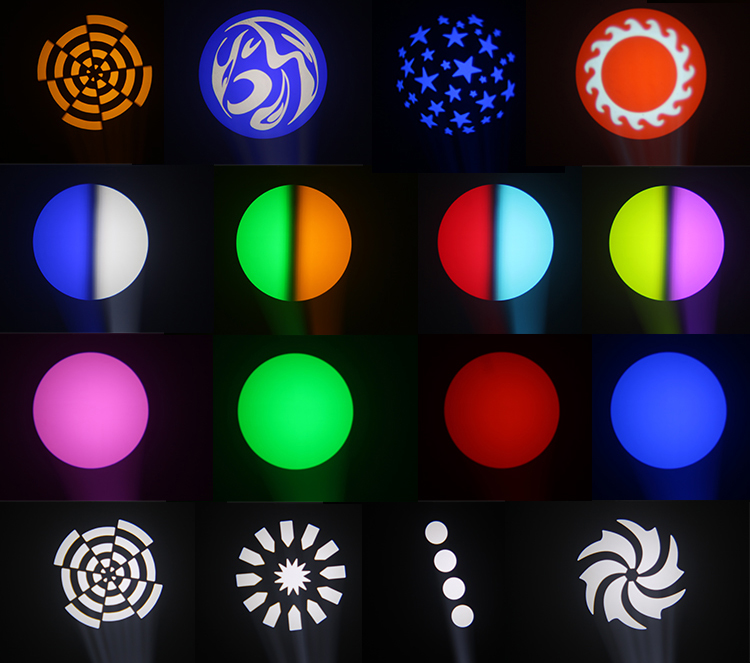

- Colour wheel: 10 colors + white
- Fixed gobo wheel: 13 fixed gobo + white
- Color disk: 6 colors
- A rotating 8-facet prism
- Bi-directional rainbow effect, speed asjustable
- Frost function
- Linear electronic focus
- 0-100% smooth linear dimming system
- Shutter: 18 times/sec high speed strobe, speed adjustable
- Control and Program
- Colorful touch LCD display, brightness and contrast ratio adjustable
- Protocol: DMX512, master-slave, sound control, auto
- Control channels: 16 CH
- Pan/Tilt resolution: 16 bit smooth scanning
- Movement
- Pan movement: 540°
- Tilt movement: 270°
- Scanning position memory
- Automatic Pan/Tilt position correction
- Electrical Specification and Connections
- Power supply: electronic auto-ranging
- Input voltage: AC 100-240 V, 50/60 Hz
- Power consumption: 215 W

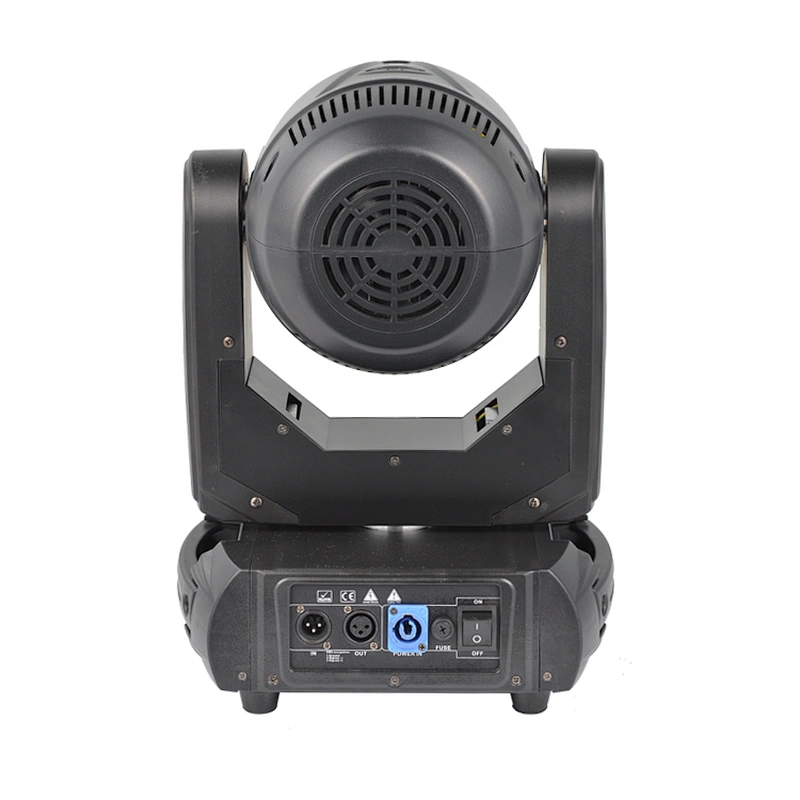

- Power connector in/out: Powercon
- Data connector in/out: 3-pin XLR
- Working Environment
- Ambient temperature: -20℃ ~ +45℃ (-4℉ ~ +113℉)
- Protection grade: IP20
- Approvals
- CE & RoHS
- If any other certificates are required, confirm with us please
- Product and Packing Dimensions
- Product: 315*250*445 mm (12.4*9.8*17.5 inch)

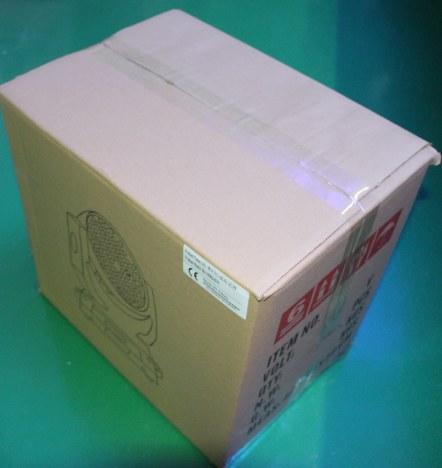

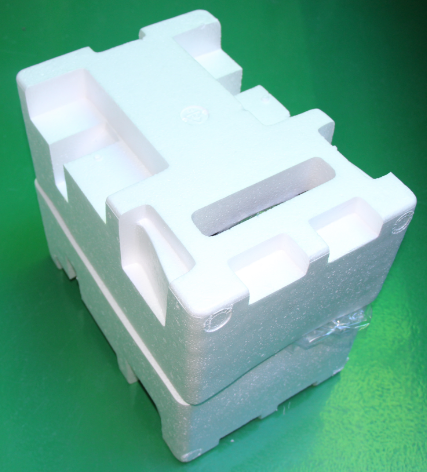

- Carton: 450*370*440 mm (17.7*14.6*17.3 inch)
- Net weight: 12.5 kg (27.6 lbs)
- Gross weight: 14 kg (30.9 lbs)

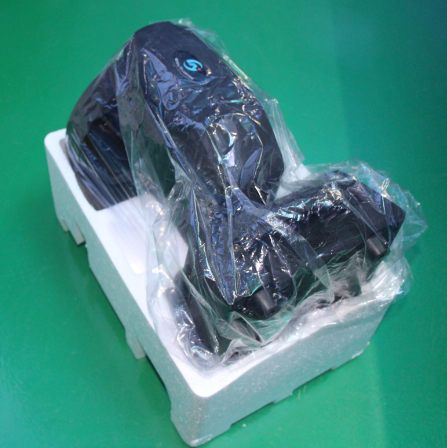

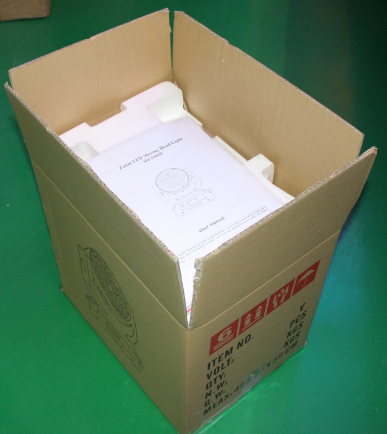

- Packing List

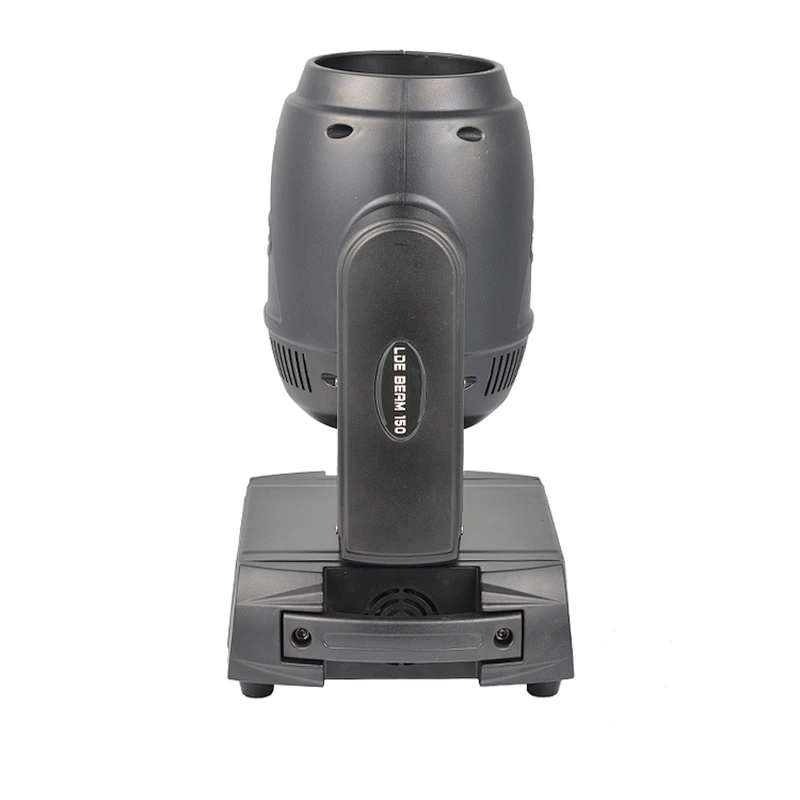

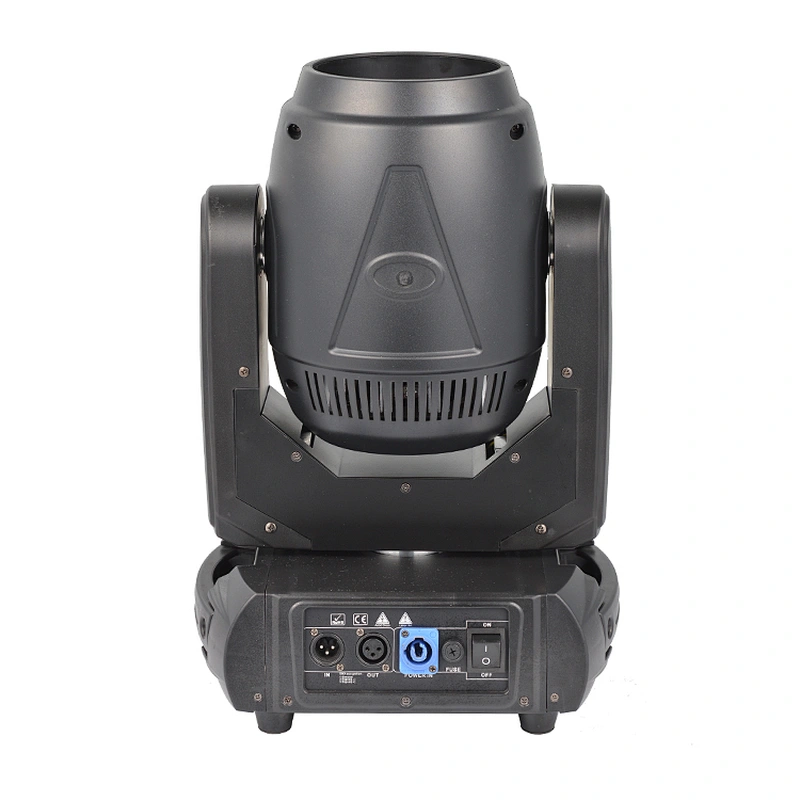

- LEDBEAM 150
- User manual
- Power cable
- 3-pin XLR connectors
- Optional Accessories
- Flight case: 2pcs in 1
- Clamp
- Safety rope
- DMX wire
