- Optical System
- Light source: 1PC 75W white LED
- Colour temperature: 7500K
- LED lifespan: 50,000 hours
- Beam angle: 13°
- Dynamic Effects
- Colour wheel: 7 color + white
- Rotating gobo wheel：6 switchable gobo(2 glass, 4 metal) + white
- Fixed gobo wheel: 8 fixed gobo + white
- A rotating 3-facet prism
- Bi-directional rainbow effect, flowing water effect, fitter effects
- Linear electronic focus
- 0-100%electronic dimming
- Shutter:0-18 time/second high-speed strobe, with random and pulse strobe
- Control and Program

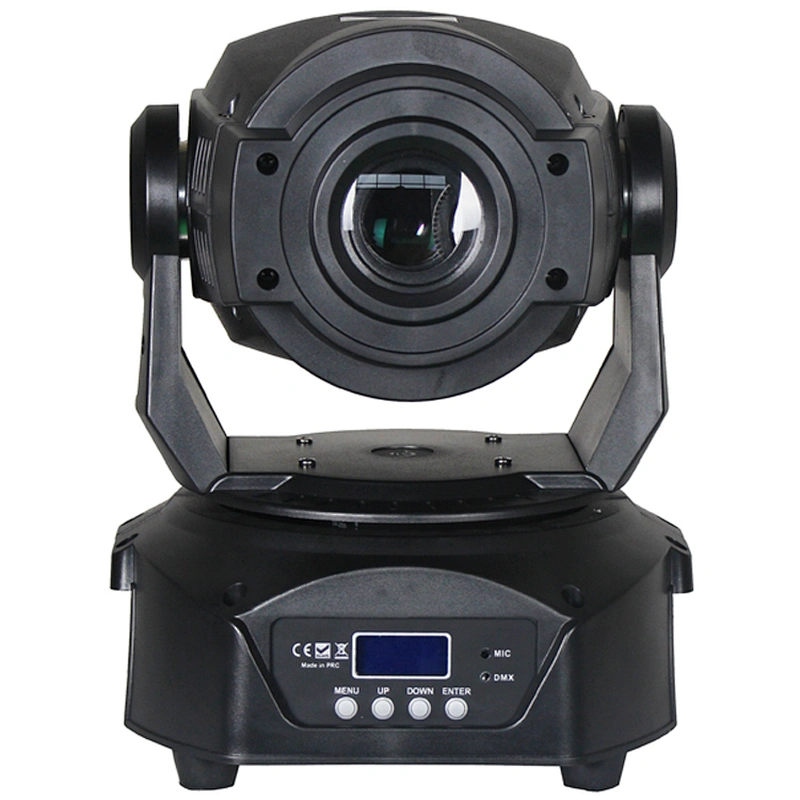

- Blue LCD display
- Protocol: DMX512, master-slave, sound control, auto
- Control channels: 11/14 CH
- Pan/Tilt resolution: 16 bit smooth scanning
- Movement
- Pan movement: 540°
- Tilt movement: 270°
- Scanning position memory
- Automatic Pan/Tilt position automatic correction
- DB rate: 55db(3”)
- Electrical Specification and Connections
- Power supply: Electronic auto-ranging
- Input voltage: AC 100-240 V, 50/60 Hz
- Power consumption: 135 W

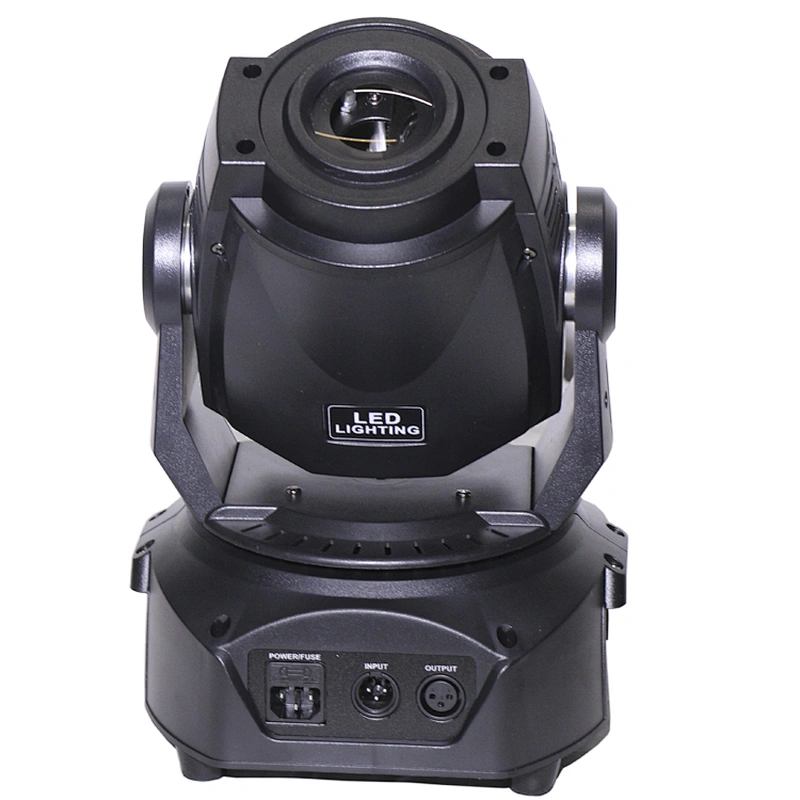

- Power connector in/out: IEC
- Data connector in/out: 3-pin XLR
- Working Environment
- Ambient temperature: -20℃ ~ +45℃ (-4℉ ~ +113℉)
- Protection grade: IP33
- Approvals
- CE & RoHS
- If any other certificates are required, confirm with us please
- Product and Packing Dimensions
- Product:350*340*365 mm (13.8*13.4*14.4 inch)
- Carton:350(L)*340(W)*340(H) mm (16.1*13.4*13.4 inch)
- Net weight: 7.3 kg (16.1 lbs)
- Gross weight: 8.5 kg (18.7 lbs)
- Packing List

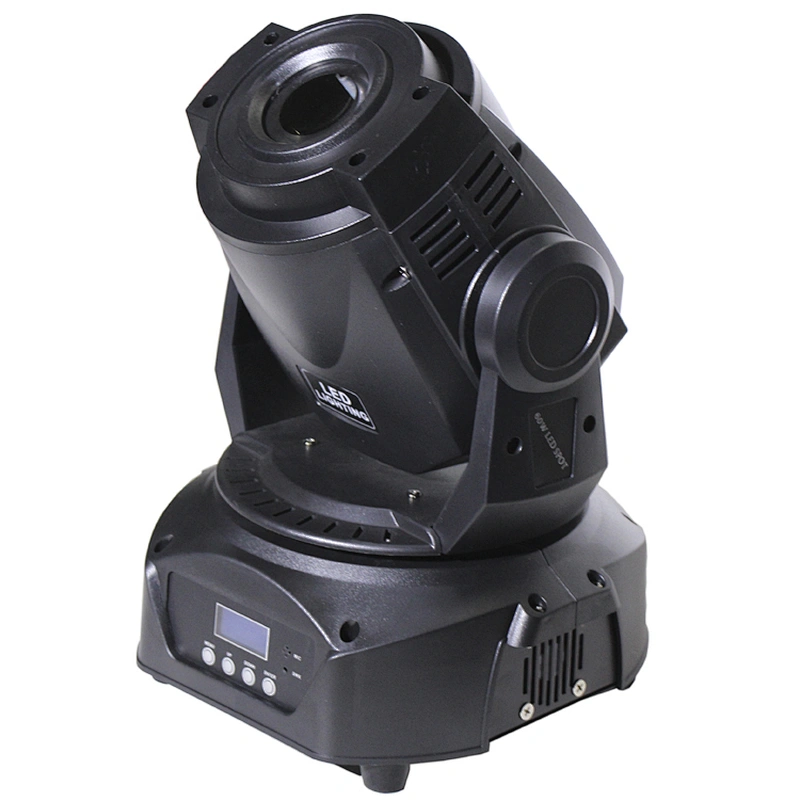

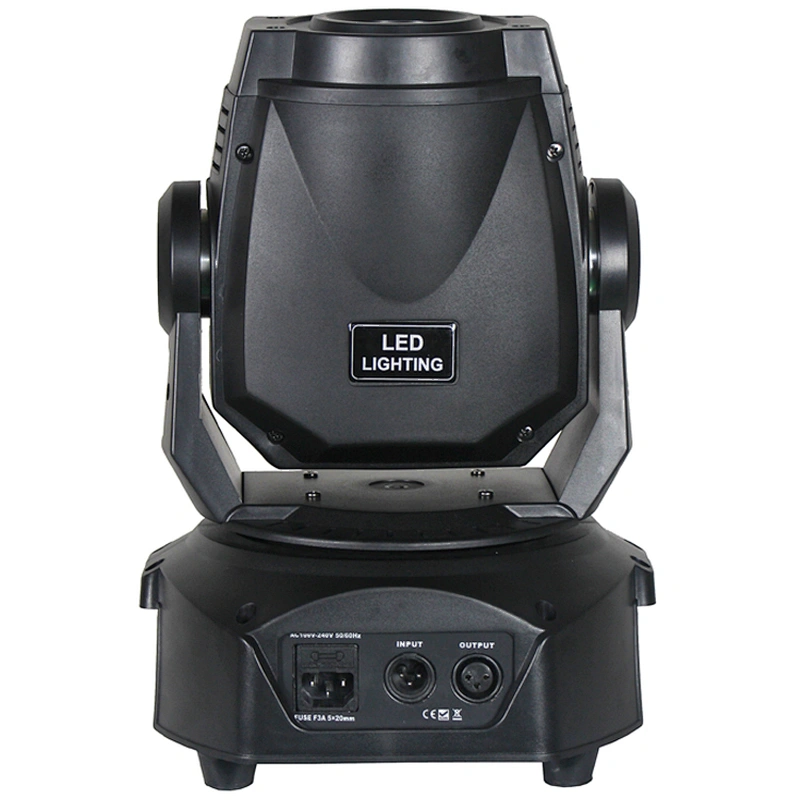

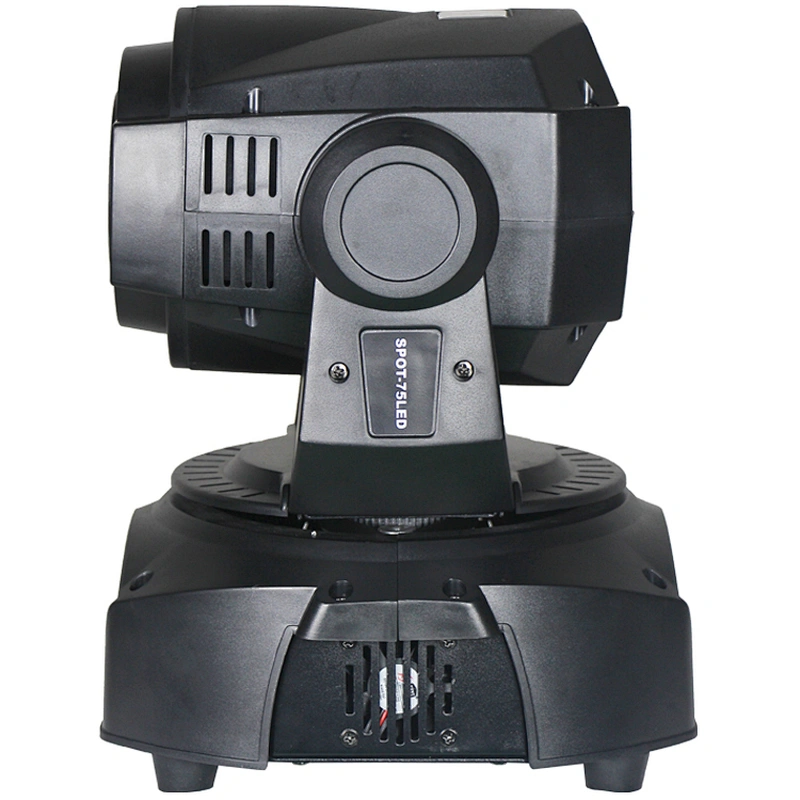

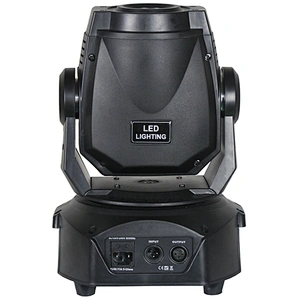

- LEDSPOT 75
- User manual
- Power cable
- 3-pin XLR connectors
- Optional Accessories
- Flight case: 4pcs in 1 (680*670*440 mm=26.8*26.4*29.5 inch, 58 kg=127.9 lbs)
- Clamp
- Safety rope
- DMX wire
