| Model No. | Product Name | Light Source | Power Consumption | DMX Channel |
| SL-1006B-4IN1 | LEDZOOM 360 | 36PCS 10W RGBW 4IN1 | 370W | 11/16CH |
| SL-1006B-5IN1 | LEDZOOM 3615 | 36PCS 15W RGBWA 5IN1 | 550W | 14/17CH |
| SL-1006B-6IN1 | LEDZOOM 3618 | 36PCS 18W RGBWA+UV 6IN1 | 658W | 13/18CH |
- Optical System
- Light source: 36PCS 10W 4in1 LED
- LED lifespan: 50,000 hours
- Zoom range: 10° - 60°
- Dynamic Effects
- RGBW mixing color system
- Mixed color uniform smooth full
- LED rainbow effect
- 0-100% electronic dimmer
- Shutter: 18 times/s strobe, plus strobe
- Control and Program
- LCD color touch screen with Chinese and English menu, adjustable brightness and contrast
- Protocol: DMX512, master-slave, sound control, auto
- Control channels: 11/16 CH
- Pan/Tilt resolution: 16 bit smooth scanning
- Movement
- Pan movement: 630°
- Tilt movement: 270°
- Scanning position memory
- Automatic Pan/Tilt position correction
- Electrical Specification and Connections
- Power supply: Electronic ballasts and switching
- Input voltage: AC 100-240 V, 50/60 Hz
- Power consumption: 370 W

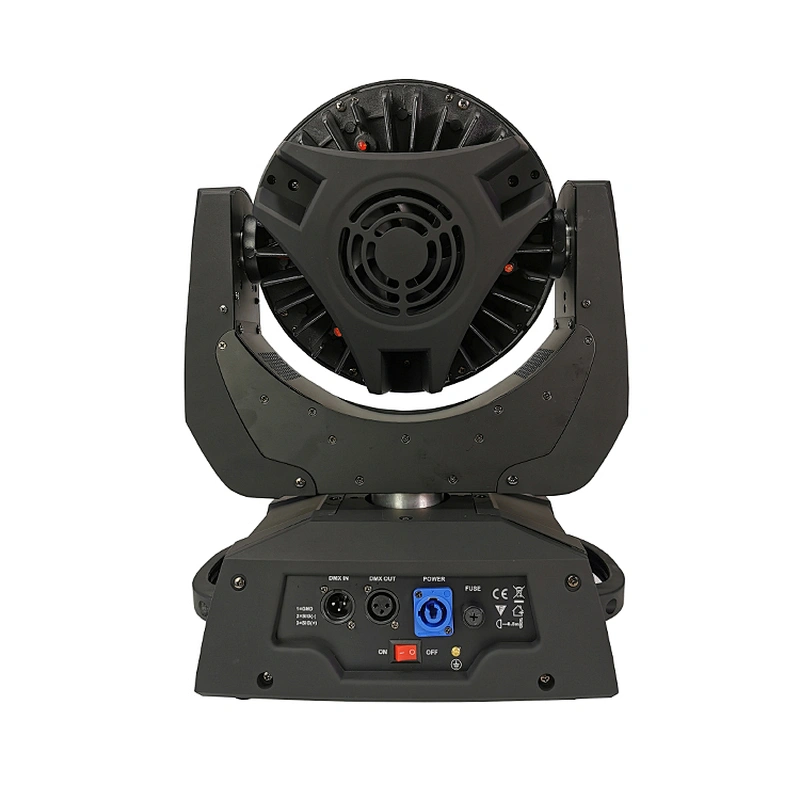

- Power connector in/out: Powercon
- Data connector in/out: 3-pin XLR
- 1PC 1/4 fast locking
- Working Environment
- Ambient temperature: -20℃ ~ +45℃ (-4℉ ~ +113℉)
- Protection grade: IP33
- Approvals
- CE & RoHS
- If any other certificates are required, confirm with us please
- Product and Packing Dimensions
- Product: 340*230*470 mm (13.4*9.1*18.5 inch)
- Carton: 430*300*390 mm (16.9*11.8*15.4 inch)
- Net weight: 9.5 kg (20.9 lbs)
- Gross weight: 11 kg (24.3 lbs)
- Packing List

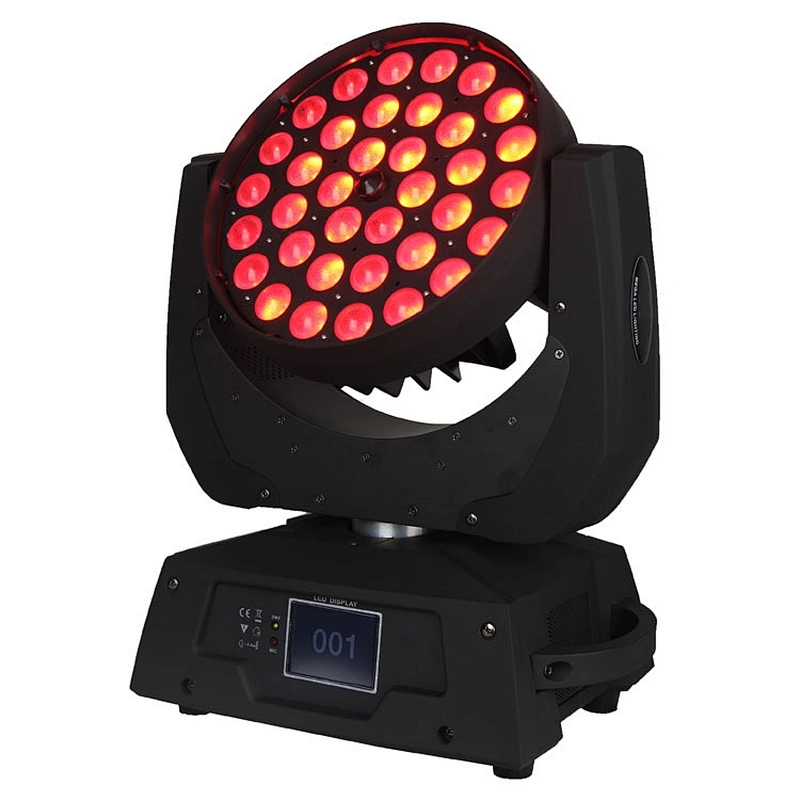

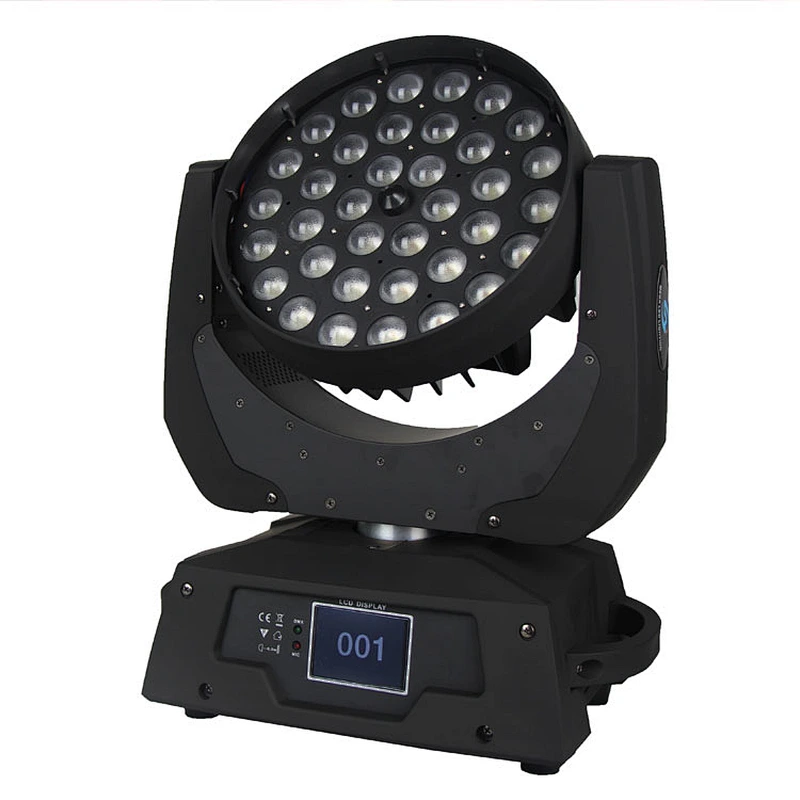

- LEDZOOM 360
- User manual
- Power cable
- 3-pin XLR connectors
- Optional Accessories
- Flight case： 2pcs in 1
- Clamp
- Safety rope
- DMX wire
