- Optional Models
| Model No. | Power | Light | Emitting | Lens | DMX |
| Consumption | Source | Color | Angle | Channels | |
SL-1005-4IN1 | 90W | 7*10W | RGBW 4IN1 | 25 | 12 CH |
SL-1005-5IN1 | 125W | 7*15W | RGBWA 5IN1 | 25 | 13 CH |
SL-1005-6IN1 | 146W | 7*18W | RGBWA+UV 6IN1 | 25 | 14 CH |
- Optical System
- Light source: 7PCS 10W 4in1 LEDs(RGB)
- LED lifespan: min. 50,000 - 80,000 hours
- Lens angle: 25° (15°, 45°, 60° optional)
- Dynamic Effects
- RGB color mixing system
- Evenly wash effects
- LED rainbow effect
- Macro function
- 0-100% smooth linear dimming system
- Shutter: 1-18 times/sec high speed strobe, speed adjustable
- Control and Program

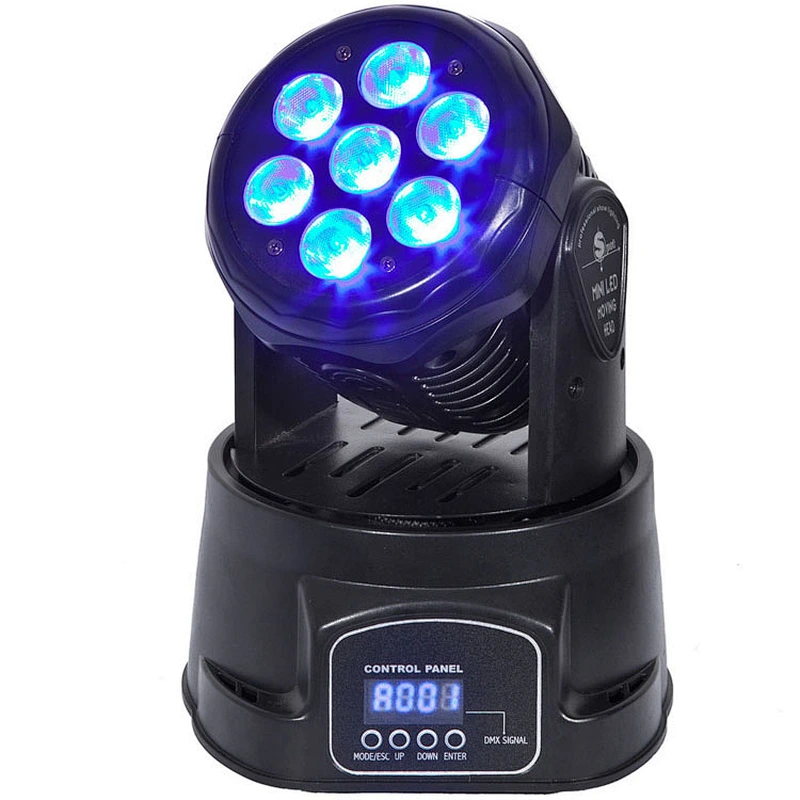

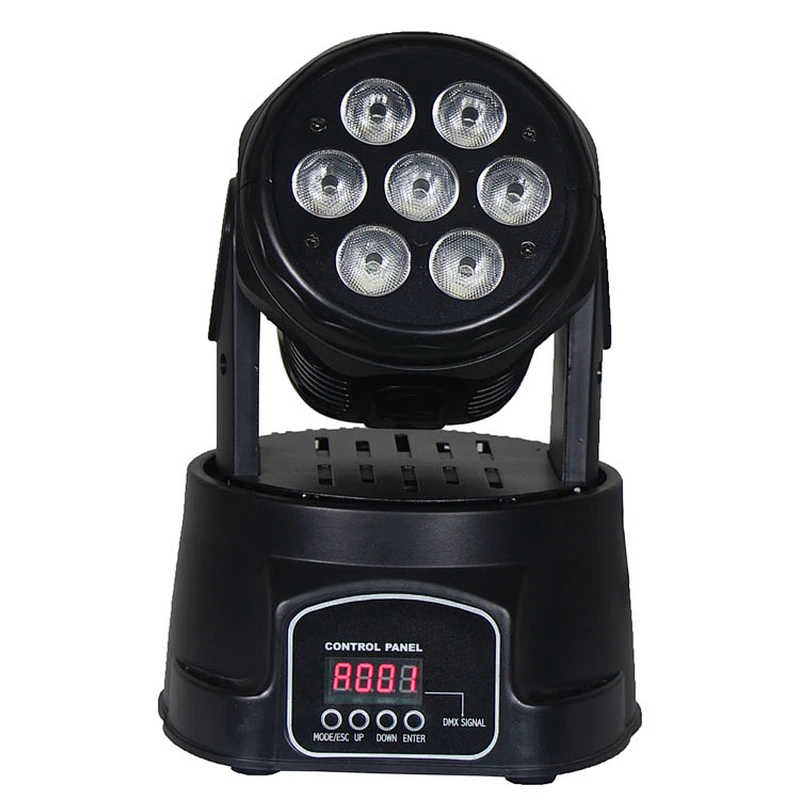

- Blue LED display
- Protocol: DMX512, master-slave, sound control, auto
- Control channel: 12 CH
- Built-in 8 pre-programs
- Marco function
- Movement
- Pan movement: 540°
- Tilt movement: 180°
- Scanning position memory
- Automatic Pan/Tilt position correction
- Pan/Tilt resolution: 16 bit smooth scanning
- Electrical Specification and Connections
- Power supply: electronic auto-ranging
- Input voltage: AC 100-240 V, 50/60 Hz
- Power consumption: 90W

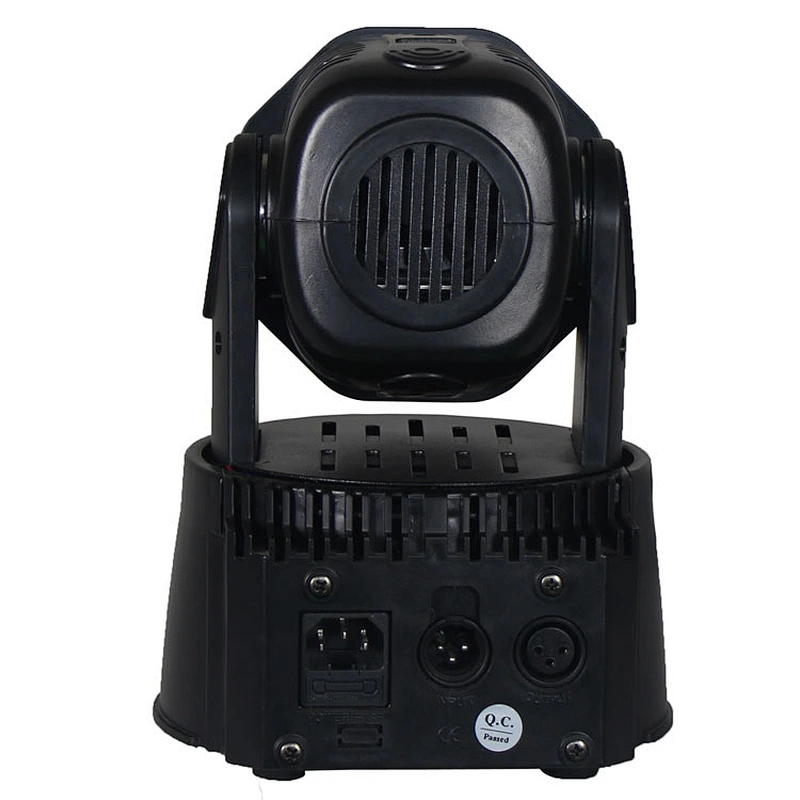

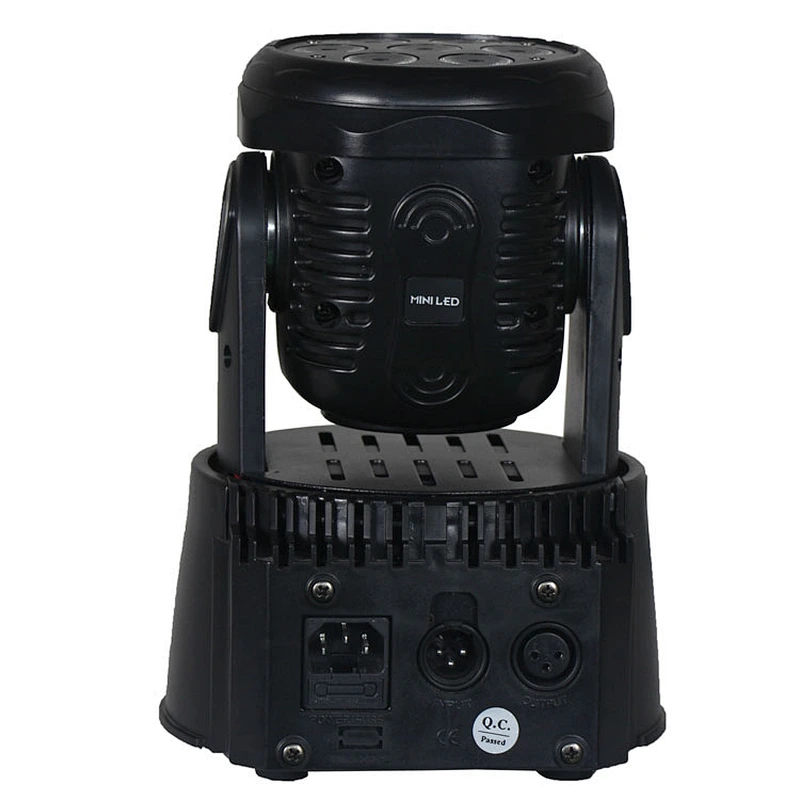

- Power connector in/out: IEC
- Data connector in/out: 3-pin XLR
- Working Environment
- Ambient temperature: -20℃ ~ +45℃ (-4℉ ~ +113℉)
- Protection grade: IP33
- Approvals
- CE & RoHS
- If any other certificates are required, confirm with us please
- Product and Packing Dimensions
- Product: 175*177*240 mm (6.9*7*9.4 inch)
- Carton: 270*230*250 mm (10.6*9.1*9.8 inch)
- Net weight: 2.8 kg (6.2 lbs)
- Gross weight: 3.5 kg (7.7 lbs)
- Packing List
- MINI WASH 710
- User manual
- Power cable
- 3-pin XLR connectors
- Optional Accessories
- Flight case: 4pcs-in-1, 8pcs-in-1
- Clamp
- Safety rope
- DMX wire
