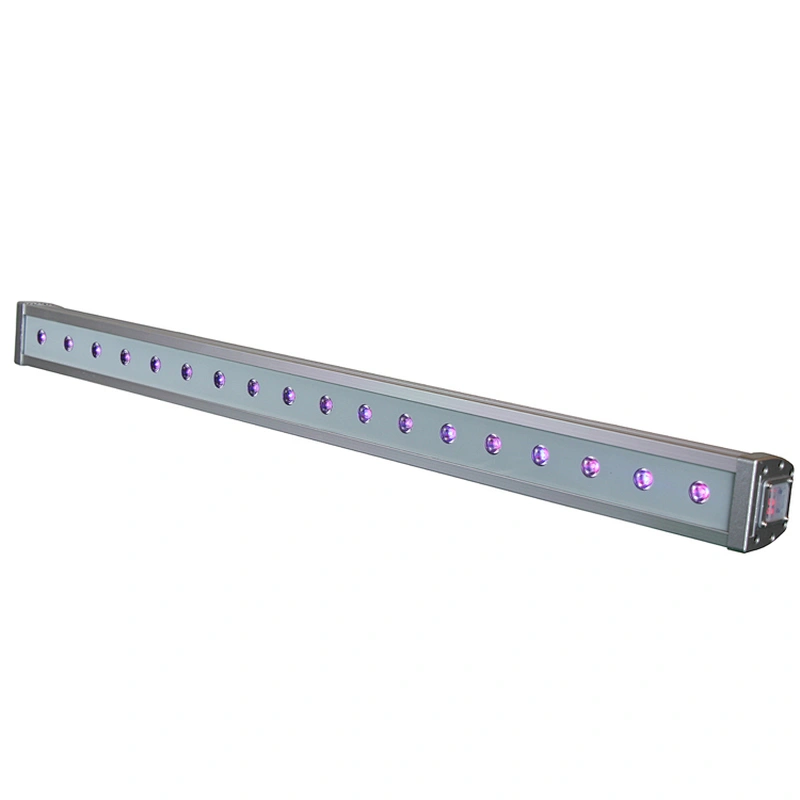

LED WALL WASHER 1810

• Optical System

1. Light source: 18pcs 10W 4in1 LED
2. LED lifespan: min. 50,000 - 80,000 hours
3. Lens angle: 25°

• Dynamic Effects

1. LED rainbow effect
2. 0-100% smooth linear dimming system

• Control and Program

1. Protocol: DMX512, master-slave, sound control, auto
2. Built-in pre-programs
3. Marco function

• Electrical Specification and Connections

1. Power supply: electronic auto-ranging
2. Input voltage: AC 90-240 V, 50-60 Hz
3. Power connector in/out: waterproof power plug
4. Data connector in/out: wasterproof 3-pin XLR

• Working Environment

1. Ambient temperature: -20℃ ~ +45℃ (-4℉ ~ +113℉)
2. Protection grade: IP65

• Approvals

1. CE & RoHS
2. If any other certificates are required, confirm with us please

• Product and Packing Dimensions

1. Product: 1000*130*120mm (39.4*5.1*4.7inch)
2. Carton: 1050*130*150 mm (41.3*5.1*5.9 inch)
3. Net weight: 4.2 kg ( 9.3lbs)
4. Gross weight:4.8 kg ( 10.6lbs)
5. Carton (6pcs-in-1): 1070*430*330mm, 27kg (42.1*17.0* 13.0inch,59.5 lbs)
6. Aluminum housing and metal base

• Packing List

1. LED WALL WASHER 1810
2. User manual
3. Waterproof power cable
4. Waterprof 3-pin XLR wire

​​​​​​​
