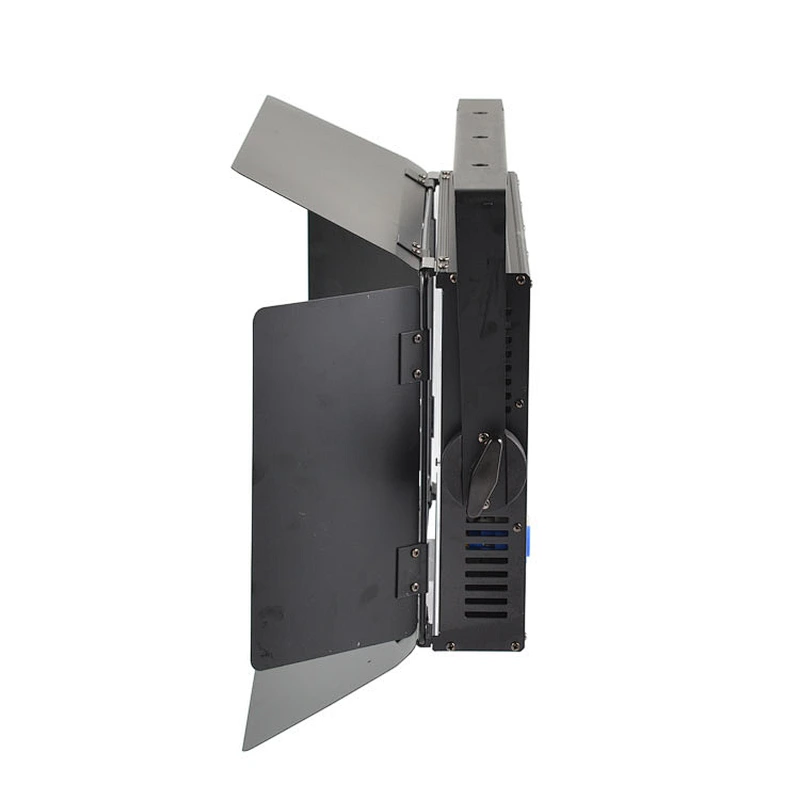

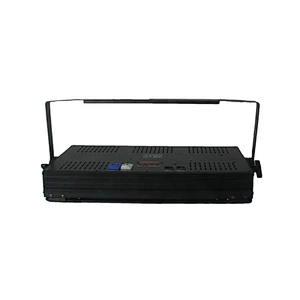

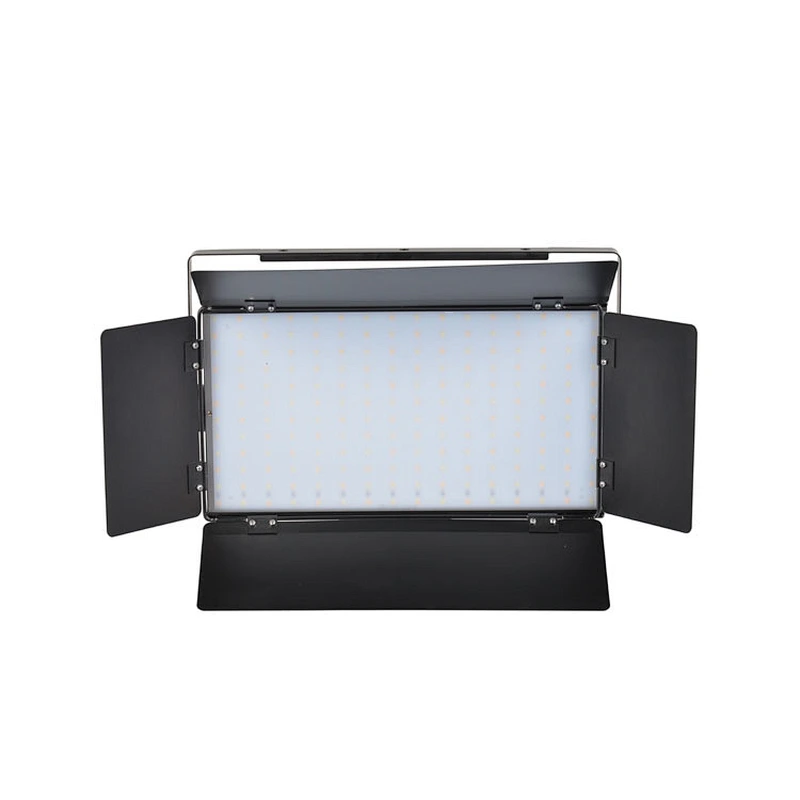

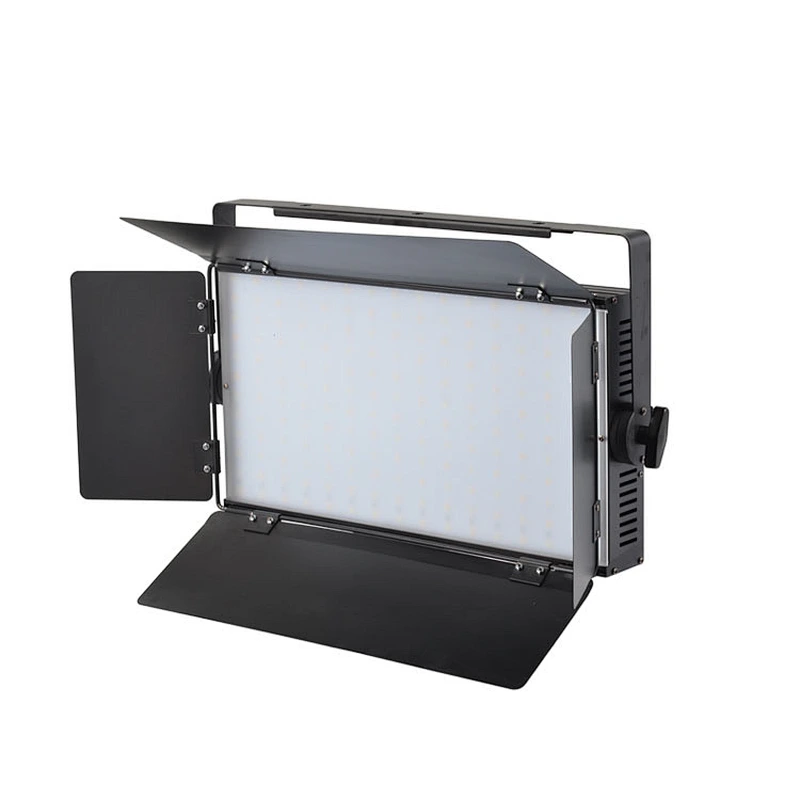

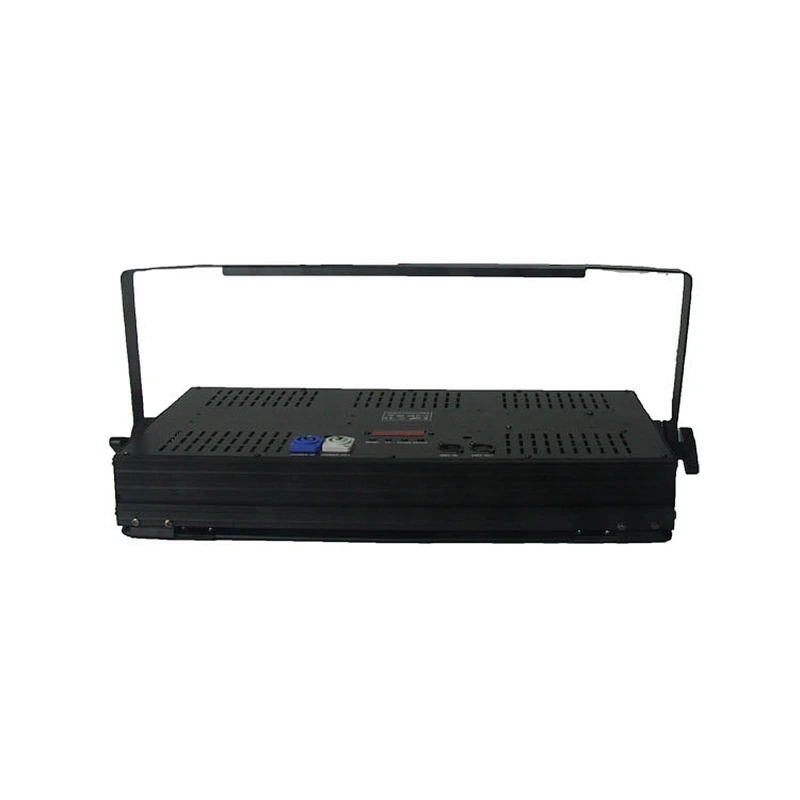

PANEL 192

. Optional Models

. Optical System

1. Light source:192X0.5W LED
2. LED life expectancy: 50,000 - 80,000 hours
3. Lens angle: 120°
4. Color Rendering Index(CRI): Ra≥85
5. Flicker-free at any frame rate or shutter angle

• Dynamic Effects

1. 0-100% smooth linear dimming system
2. Shutter: 1-25 times/sec high speed strobe, speed adjustable
3. With random strobe and pulse effect

• Control and Program

1. DMX512, master-slave, sound control, auto programs
2. Built-in pre-program
3. Marco function

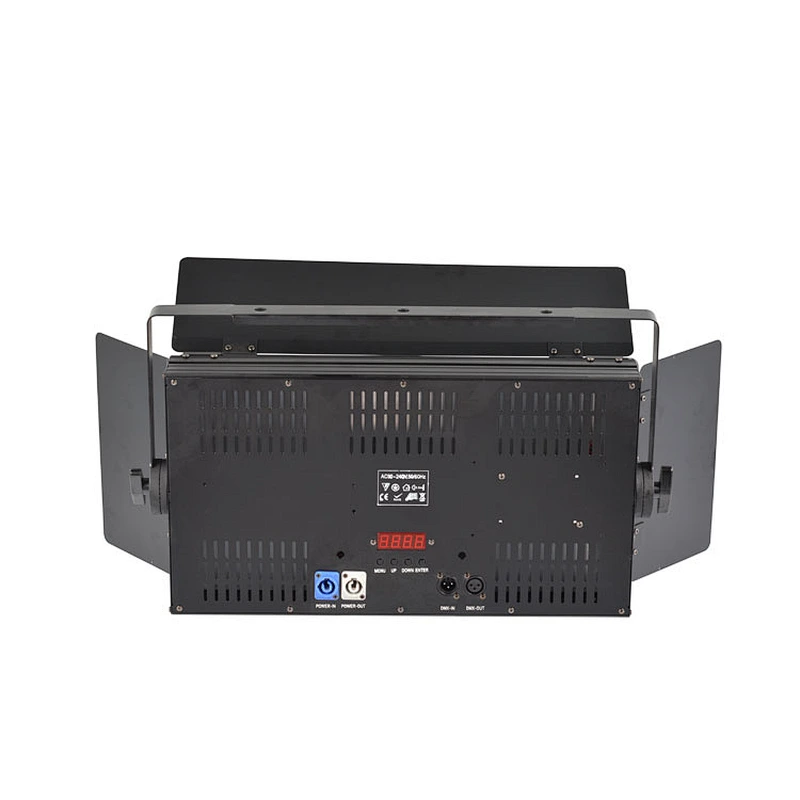

• Electrical Specification and Connections

1. Input voltage: AC 90-240 V, 50-60 Hz, auto ranging
2. Power connector in/out: Powercon
3. Data connector in/out: 3-pin XLR

• Working Environment

1. Ambient temperature: -25℃ ~ +45℃ (-13℉ ~ +113℉)
2. Protection grade: IP20

• Approvals

1. CE, RoHS,
2. If any other certificates are required, confirm with us please

• Product and Packing Dimensions

1. Product: 610*350*100 mm (24.0*13.8*3.9inch)
2. Box: 645*390*150 mm (25.4*15.4*5.9inch)
3. Net weight: 6.8 kg (15.0 lbs)
4. Gross weight: 7.2 kg (15.9 lbs)

• Packing List

1. Panel 192
2. User manual
3. Power cable

• Optional Accessories

1. Flight case: 4pcs-in-1
2. Clamp
3. Safety rope
4. DMX wire
5. Tripod stand
