- Optional Models
| Model No. | Prism |
| SL-1066 | × |
| SL-1066A | √ |
- Optical System
- Light source: 1PC 60W LUMEN white LED
- LED lifespan: 50,000 hours
- Beam angle: 12°
- Bright lux: 2400 Lux/5m
- Dynamic Effects
- Colour wheel: 7 color + white
- Fixed gobo wheel: 7 fixed gobo + white
- Gobo shake function
- Manual focusing
- 0-100% linear dimming function
- Shutter: 0-20 time/scond high-speed LED electronic strobe
- Control and Program
- LED display
- Protocol: DMX512, master-slave, sound control, auto
- Control channels: 9/11 CH
- Pan/Tilt Reverse function
- Movement
- Pan movement: 540°
- Tilt movement: 230°
- Scanning position memory
- Automatic reset
- Electrical Specification and Connections
- Power supply: Electronic auto-ranging
- Input voltage: AC 100-240 V, 50/60 Hz
- Power consumption: 100 W
- Power connector in/out: IEC
- Data connector in/out: 3-pin XLR
- Working Environment
- Ambient temperature: -20℃ ~ +45℃ (-4℉ ~ +113℉)
- Protection grade: IP20
- Approvals
- CE & RoHS
- If any other certificates are required, confirm with us please
- Product and Packing Dimensions
- Product:194*151*285 mm (7.6*5.9*11.2 inch)
- Carton:290(L)*210(W)*280(H) mm (11.4*8.3*11 inch)
- Net weight: 3.1 kg (6.8 lbs)
- Gross weight: 4 kg (8.8 lbs)
- Packing List

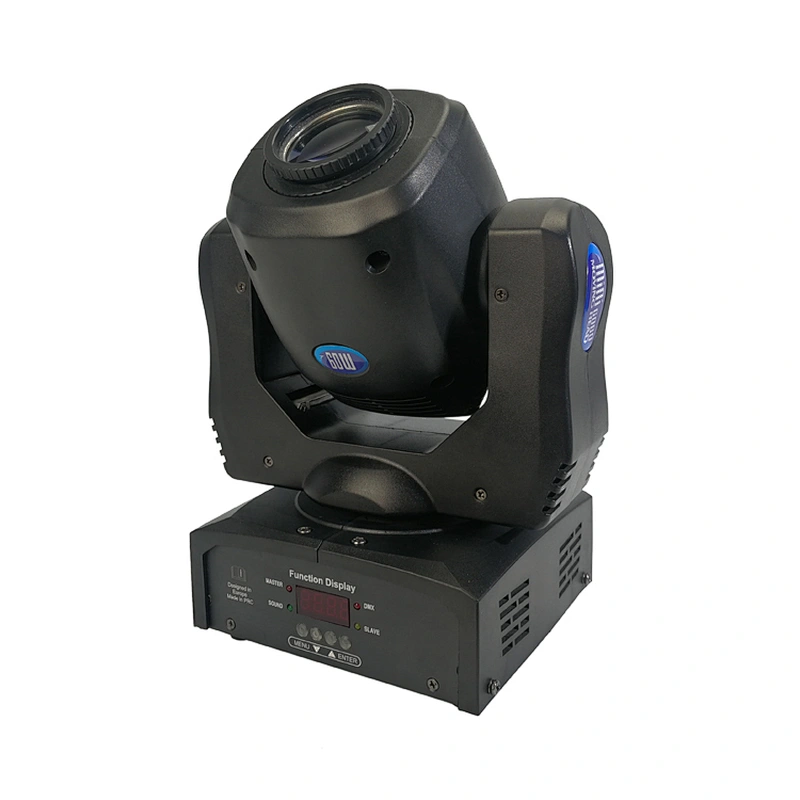

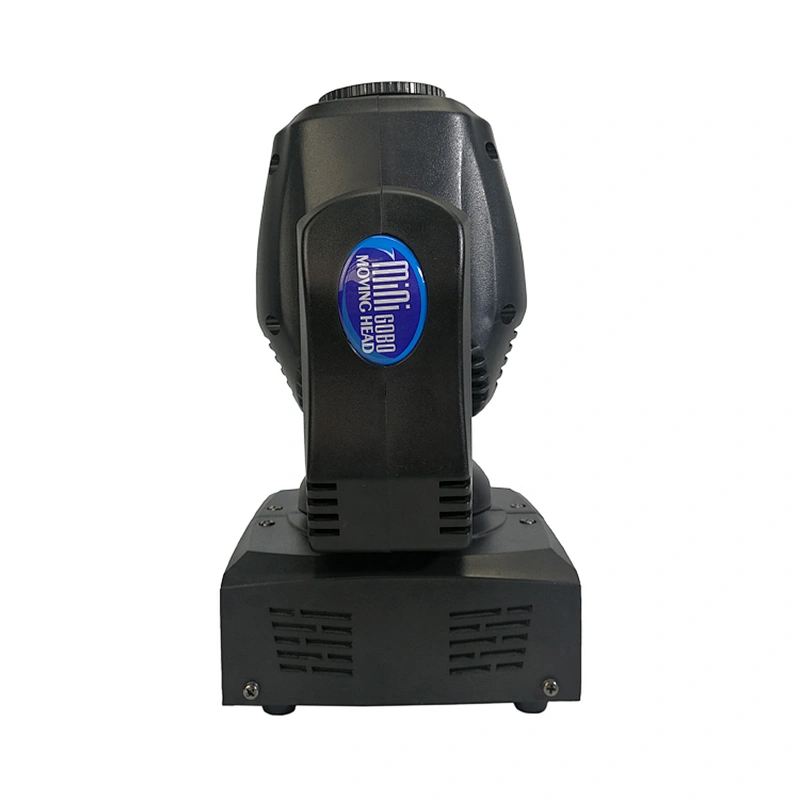

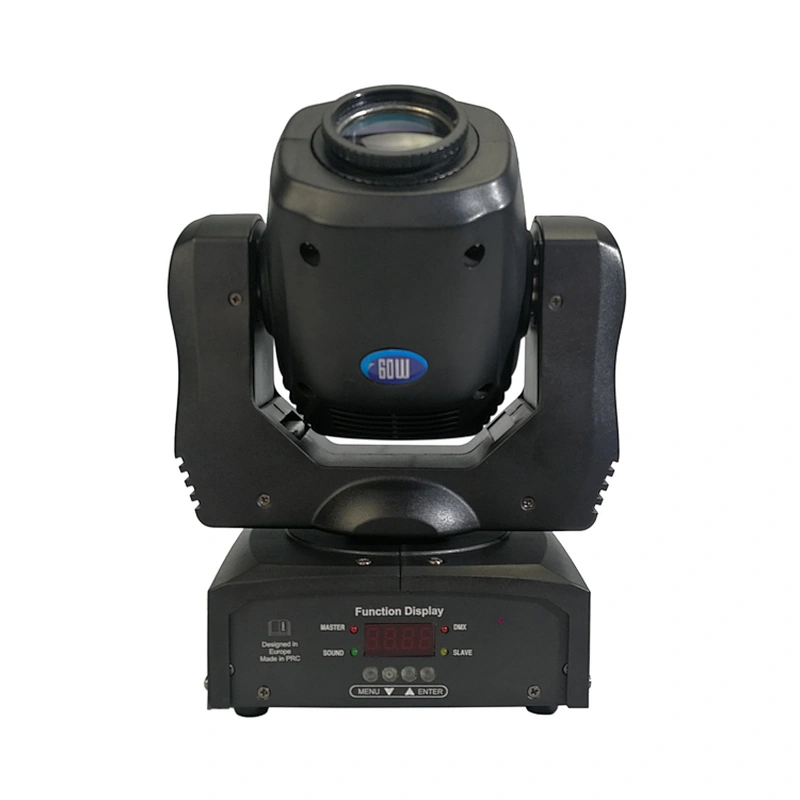

- Inno Pocket Spot 60
- User manual
- Power cable
- 3-pin XLR connectors
- Optional Accessories
- Flight case
- Clamp
- Safety rope
- DMX wire
