Español
- Optical System
- Light source: 18pcs 3W 3in1 LED
- LED lifespan: min. 50,000 - 80,000 hours
- Lens angle: 25°
- Dynamic Effects
- LED rainbow effect
- 0-100% smooth linear dimming system
- LED shutter
- Control and Program

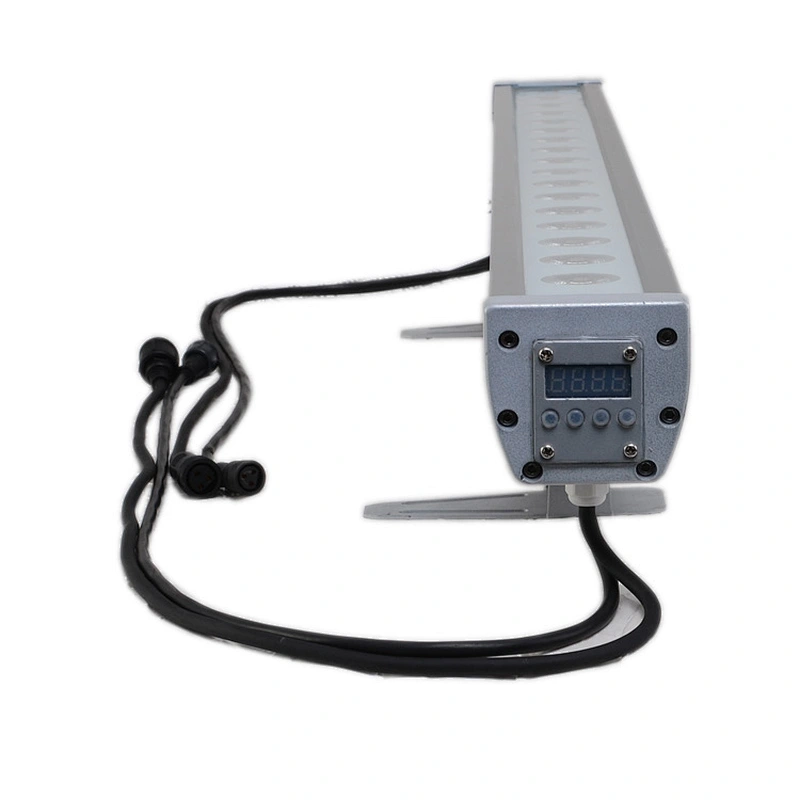

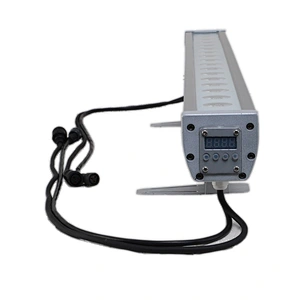

- LED display
- Protocol: DMX512, master-slave, sound control, auto
- DMX channels: 8/23/54CH
- Built-in pre-programs
- Marco function
- Electrical Specification and Connections
- Power supply: electronic auto-ranging
- Input voltage: AC 90-240 V, 50-60 Hz
- Power connector in/out: waterproof power plug
- Data connector in/out: wasterproof 3-pin XLR
- Working Environment
- Ambient temperature: -20℃ ~ +45℃ (-4℉ ~ +113℉)
- Protection grade: IP65
- Approvals
- CE & RoHS
- If any other certificates are required, confirm with us please
- Product and Packing Dimensions
- Product: 1000*130*120mm (39.4*5.1*4.7inch)
- Carton: 1050*130*150 mm (41.3*5.1*5.9 inch)
- Net weight: 3.6 kg ( 7.9lbs)
- Gross weight:4.1 kg ( 9.0lbs)
- Carton (6pcs-in-1): 1070*430*330mm, 27kg (42.1*17.0* 13.0inch,59.5 lbs)
- Aluminum housing and metal base
- Packing List

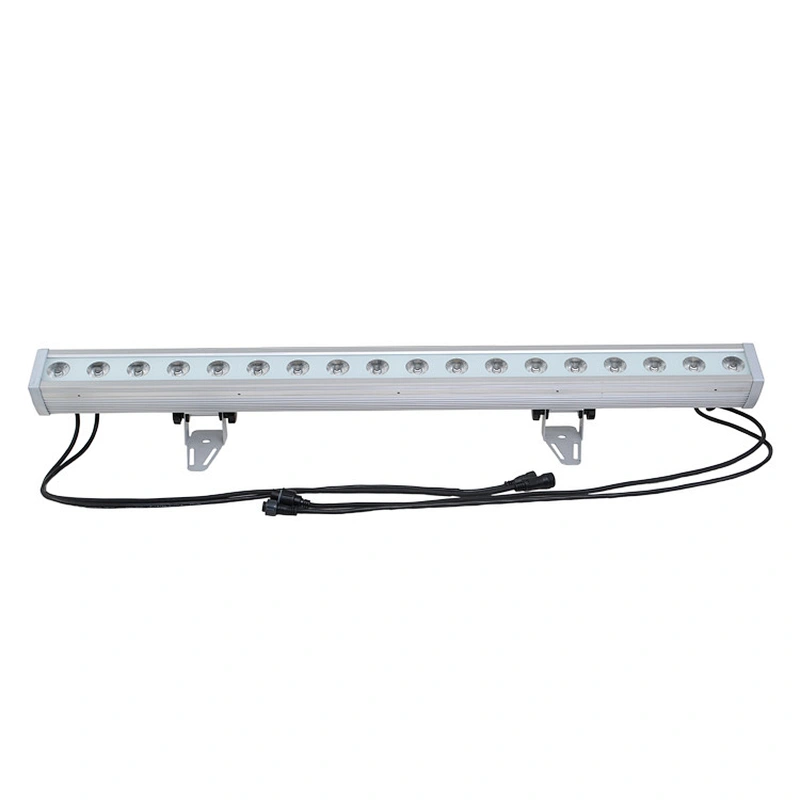

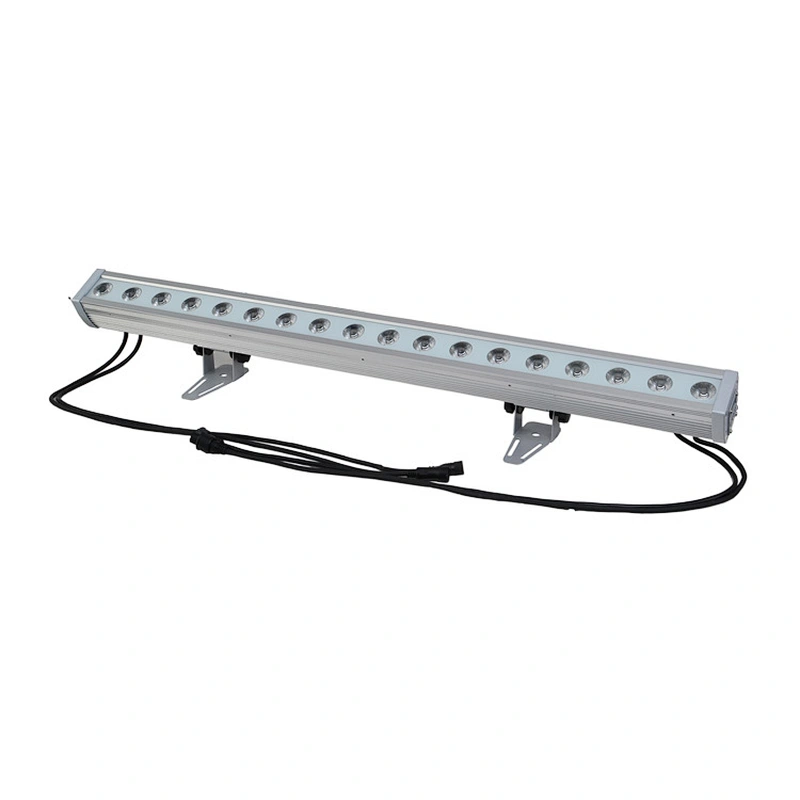

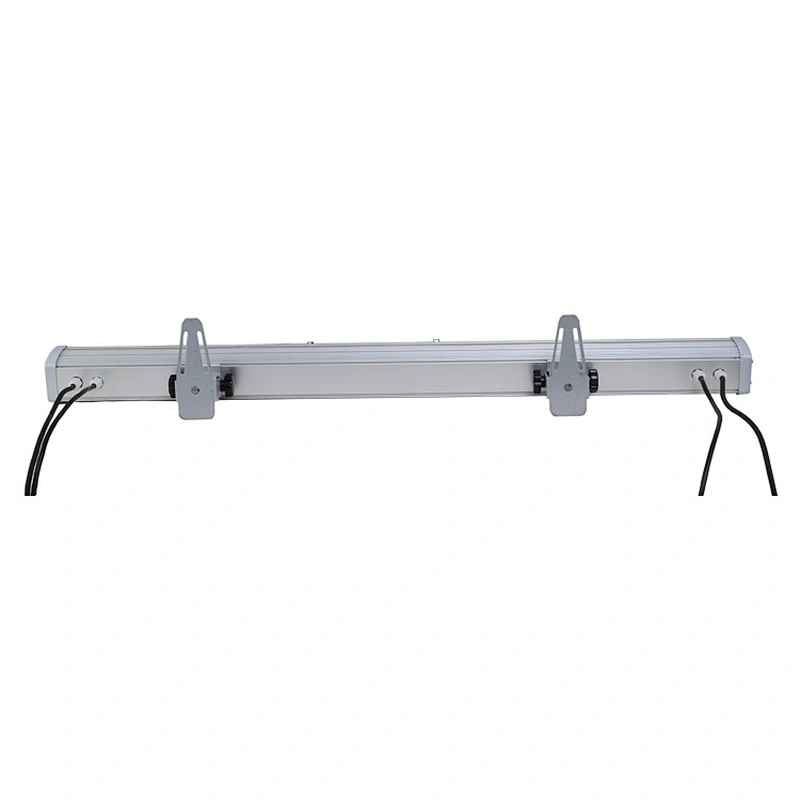

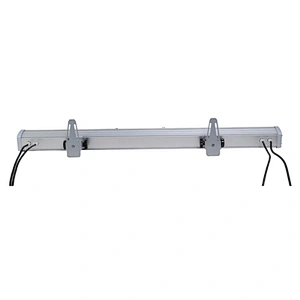

- MATRIX BAR 183
- User manual
- Waterproof power cable
- Waterprof 3-pin XLR wire
- Optional Accessories
- Flight case
- Clamp
- Safety rope
- Extensional DMX wire
