• Optional Models

• Optical System

1. Light source: 192pcs 3W LED
2. LED lifespan: min. 50,000 - 80,000 hours
3. Lens angle: 25°

• Dynamic Effects

1. LED rainbow effect
2. 0-100% smooth linear dimming system
3. Shutter: 1-18 times/sec high speed strobe, speed adjustable
4. With random strobe and pulse effect

• Control and Program

1. Protocol: DMX512, master-slave, sound control, auto
2. Control Channel: 4/8/12 DMX512 channels
3. Built-in pre-programs
4. Marco function

• Electrical Specification and Connections

1. Power supply: electronic auto-ranging
2. Input voltage: AC 90-240 V, 50-60 Hz
3. Power connector in/out: waterproof power plug
4. Data connector in/out: wasterproof 3-pin XLR

• Working Environment

1. Ambient temperature: -20℃ ~ +45℃ (-4℉ ~ +113℉)
2. Protection grade: IP65

• Approvals

1. CE & RoHS
2. If any other certificates are required, confirm with us please

• Product and Packing Dimensions

1. Product: 640*560*430mm (25.2*22*17inch)
2. Flight case: 740*670*640 mm (29.1*26.4* 25.2inch)
3. Net weight: 31 kg ( 68.3lbs)
4. Gross weight:53 kg (116.8 lbs)
5. Die-cast Aluminum housing and metal base

• Packing List

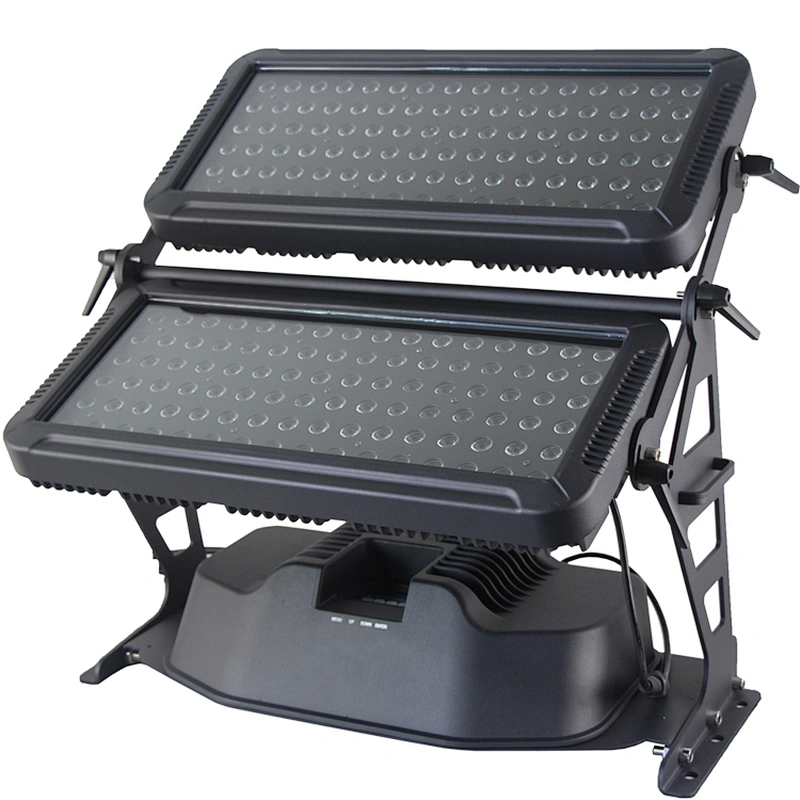

1. LED CITY COLOR 1923
2. User manual
3. Waterproof power cable
4. Waterprof 3-pin XLR wire

• Optional Accessories

1. Flight case
2. Clamp
3. Safety rope
4. Extensional DMX wire

、
