- Optional Models
| Model NO. | Power Consumption | Light Source | Emitting Color | Lens Angle | Lens Optional | DMX Channels |
| SL-2009B 1W25DRGB | 48W | 48*1W | RGB | 25° | 15°, 45°, 60° | 3/7CH |
| SL-2009B 3W25DRGB | 144W | 48*3W | RGB | 25° | 15°, 45°, 60° | 3/7CH |
- Optical System

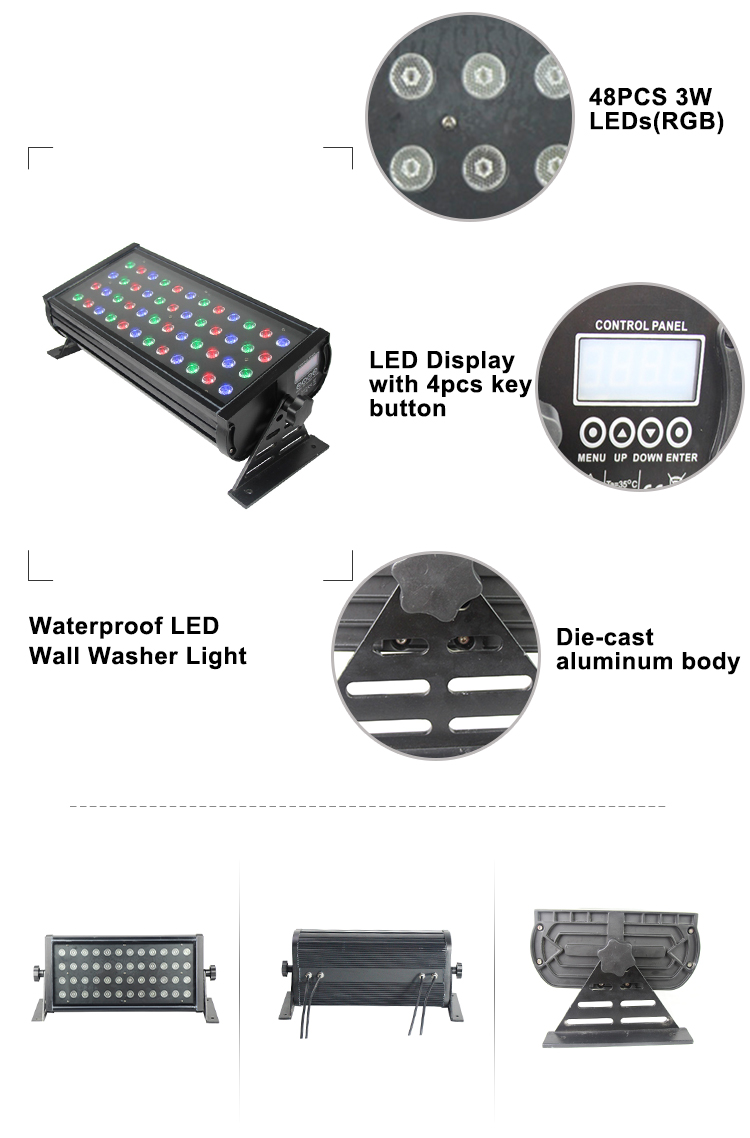

- Light source: 48pcs 1W LED
- LED lifespan: min. 50,000 - 80,000 hours
- Lens angle: 25° (15°, 45°, 60° optional)
- Dynamic Effects
- LED rainbow effect
- 0-100% smooth linear dimming system
- Shutter: 1-18 times/sec high speed strobe, speed adjustable
- With random strobe and pulse effect
- Control and Program

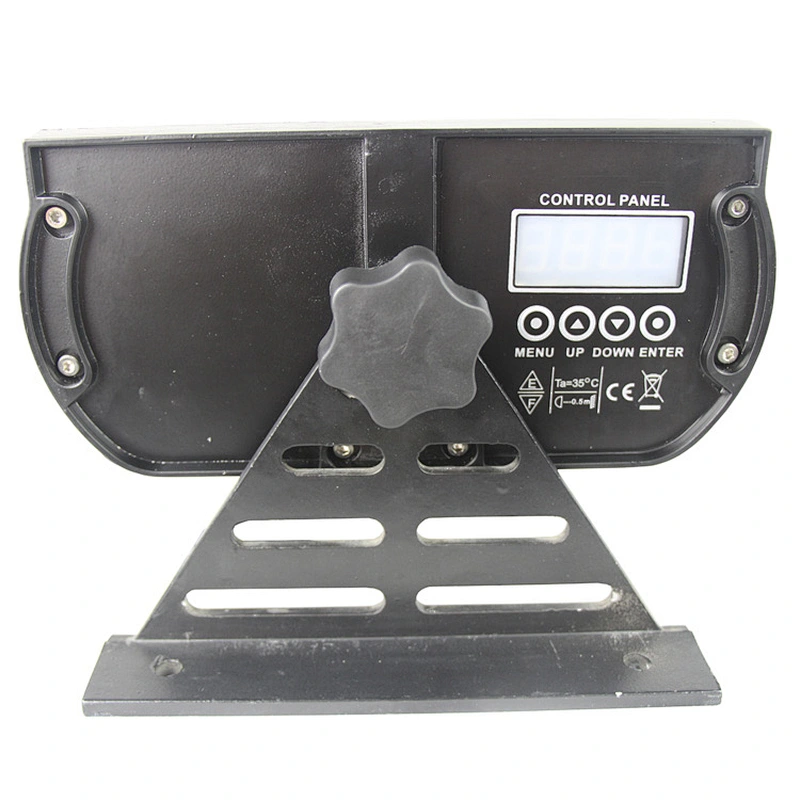

- LED display
- Protocol: DMX512, master-slave, sound control, auto
- Built-in pre-programs
- Marco function
- Electrical Specification and Connections
- Power supply: electronic auto-ranging
- Input voltage: AC 90-240 V, 50-60 Hz
- Power connector in/out: waterproof power plug
- Data connector in/out: wasterproof 3-pin XLR
- Working Environment
- Ambient temperature: -20℃ ~ +45℃ (-4℉ ~ +113℉)
- Protection grade: IP65
- Approvals
- CE & RoHS
- If any other certificates are required, confirm with us please
- Product and Packing Dimensions
- Product: 430*215*170mm (16.9*8.5*7.0inch)
- Carton: 490*300*190 mm (19.3*11.8*7.5 inch)
- Net weight: 8 kg ( 17.6lbs)
- Gross weight:9.2 kg ( 20.20lbs)
- Die-cast Aluminum housing and metal base
- Packing List

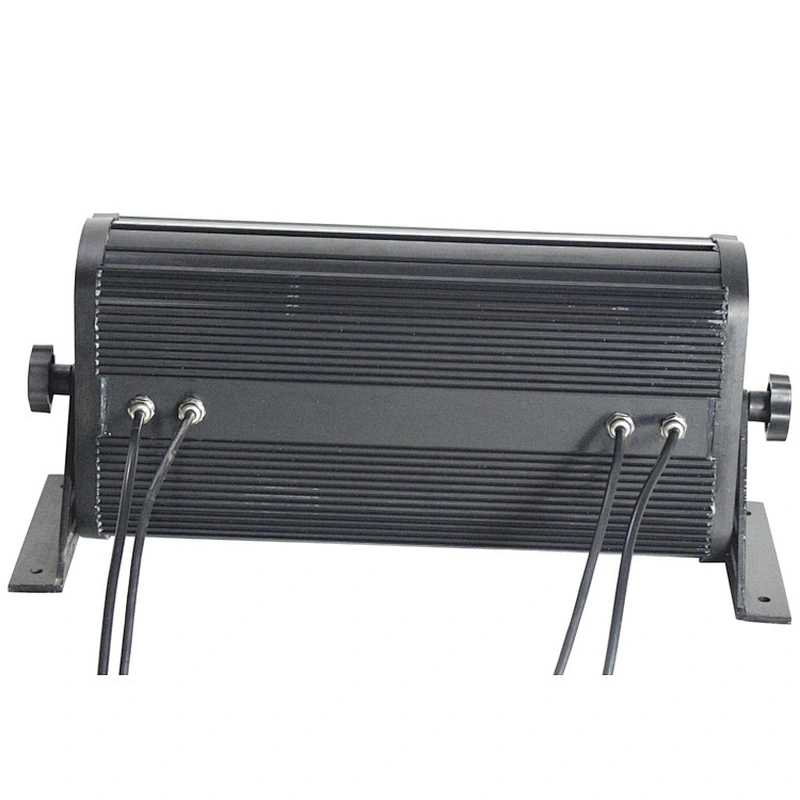

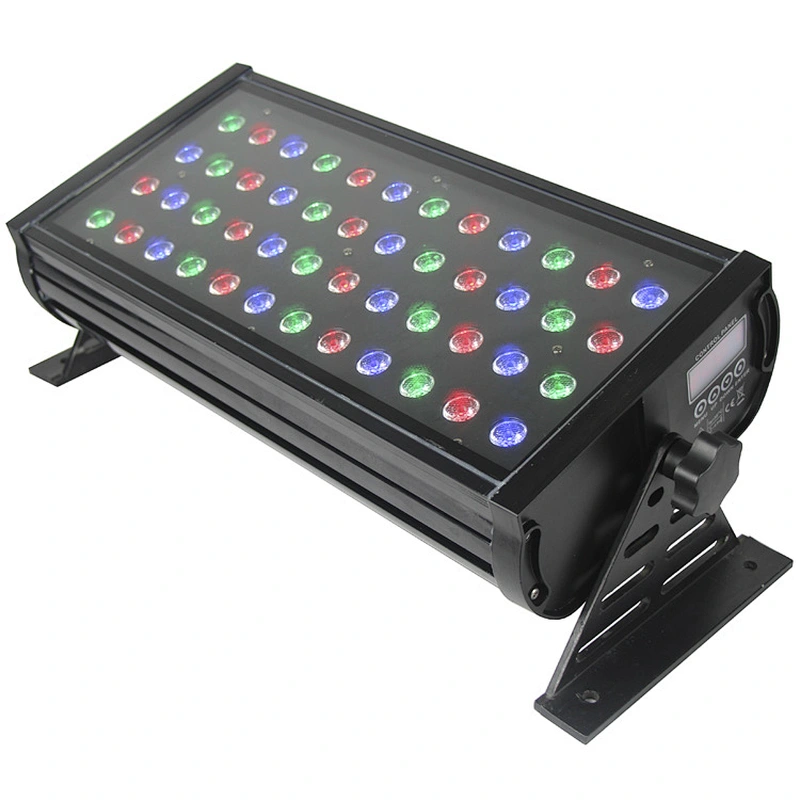

- LED WALL WASHER 483
- User manual
- Waterproof power cable
- Waterprof 3-pin XLR wire
