- Optical System
- Light source: 36x3W CREE XP-E 2800K amber LED
- LED life expectancy: 50,000 - 80,000 hours
- Lens angle: 7°
- Projection angle: 12°
- Flicker-free
- Dynamic Effects
- 36 pixels (each LED is a pixel), controllable individually
- 0-100% smooth linear dimming system
- 1-30 times/s high speed strobe effect, speed adjustable
- 20 Different patterns, speed and step controllable
- 26 Letters, 10 digits and special signs
- Control and Program
- DMX512, master-slave, sound control, auto programs
- Control Channels: 5/36 DMX channel
- Built-in pre-program
- Marco function
- Electrical Specification and Connections
- Input voltage: AC 90-240 V, 50-60 Hz, auto ranging

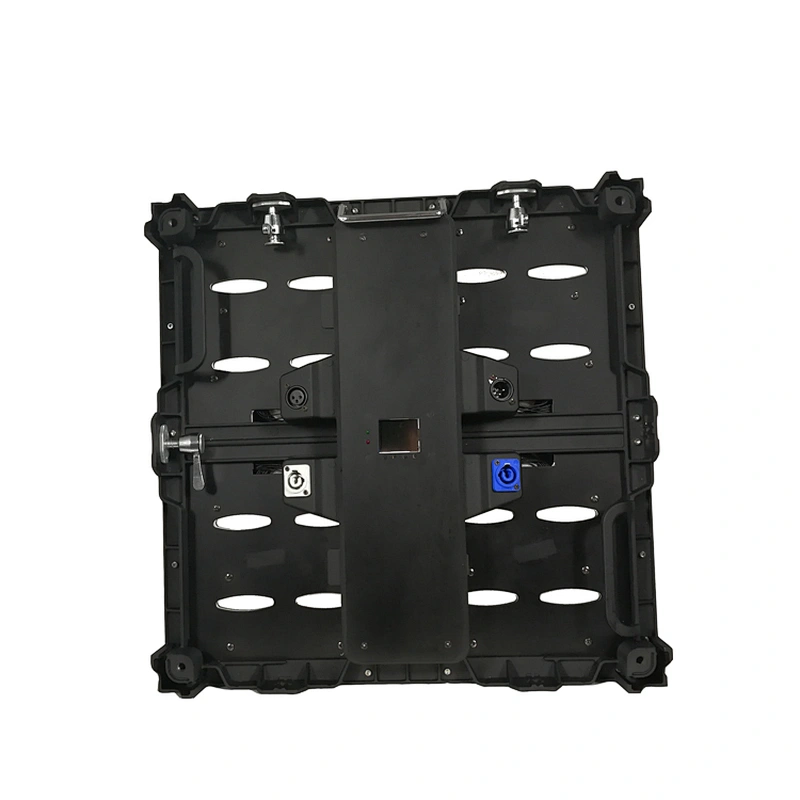

- Power connector in/out: Powercon
- Data connector in/out: 3-pin XLR
- Working Environment
- Ambient temperature: -25℃ ~ +45℃ (-13℉ ~ +113℉)
- Protection grade: IP20
- Approvals
- CE, RoHS,
- If any other certificates are required, confirm with us please
- Product and Packing Dimensions

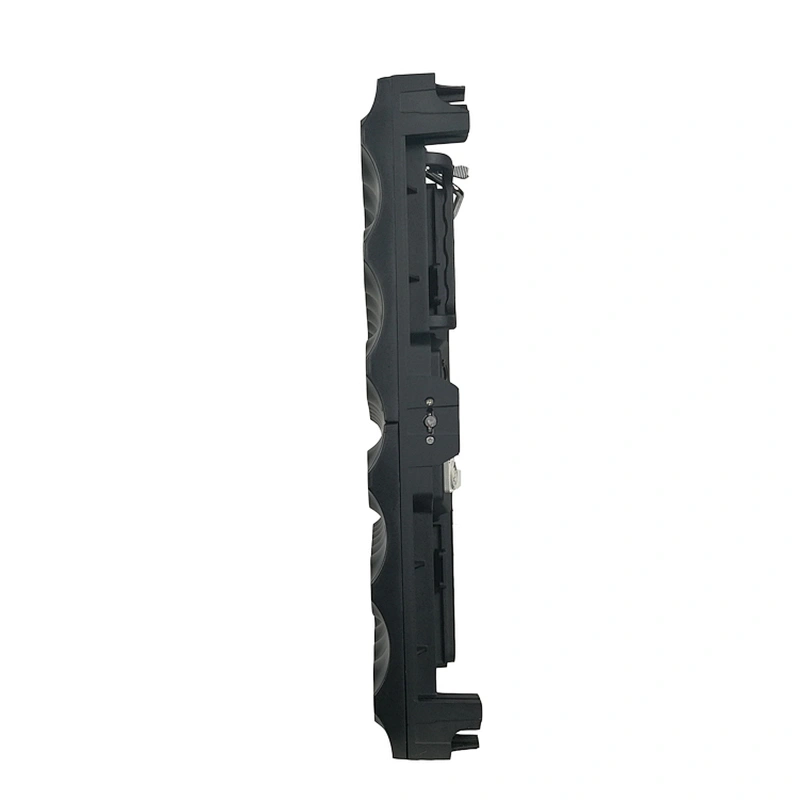

- Product: 500*500*90 mm (19.7*19.7*3.5inch)
- Box: 650*650*190 mm (25.6*25.6*7.5inch)
- Net weight: 7.5 kg (16.5 lbs)
- Gross weight: 8.8 kg (19.4 lbs)
- Packing List

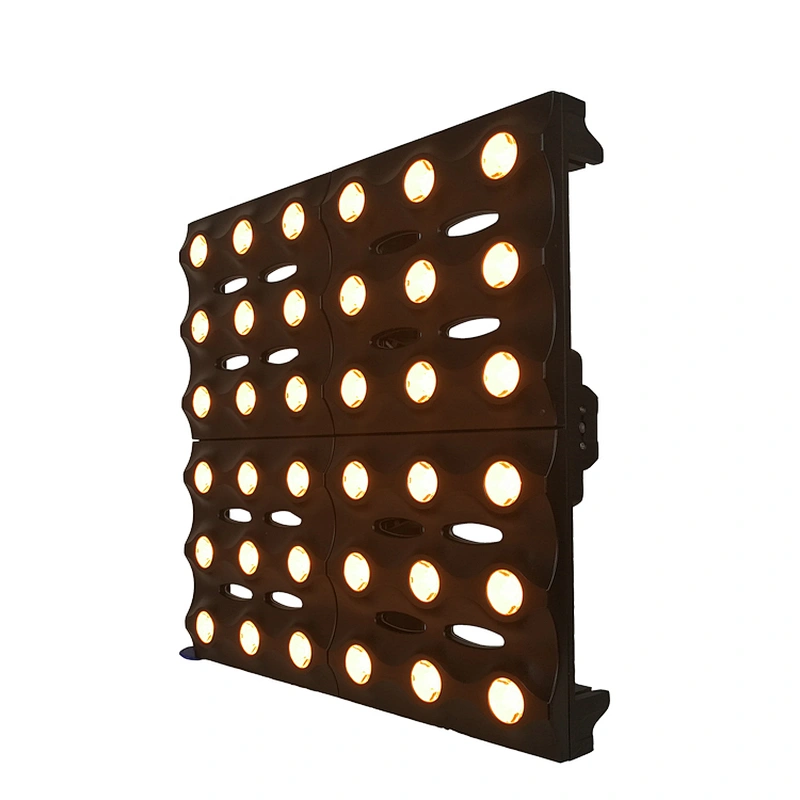

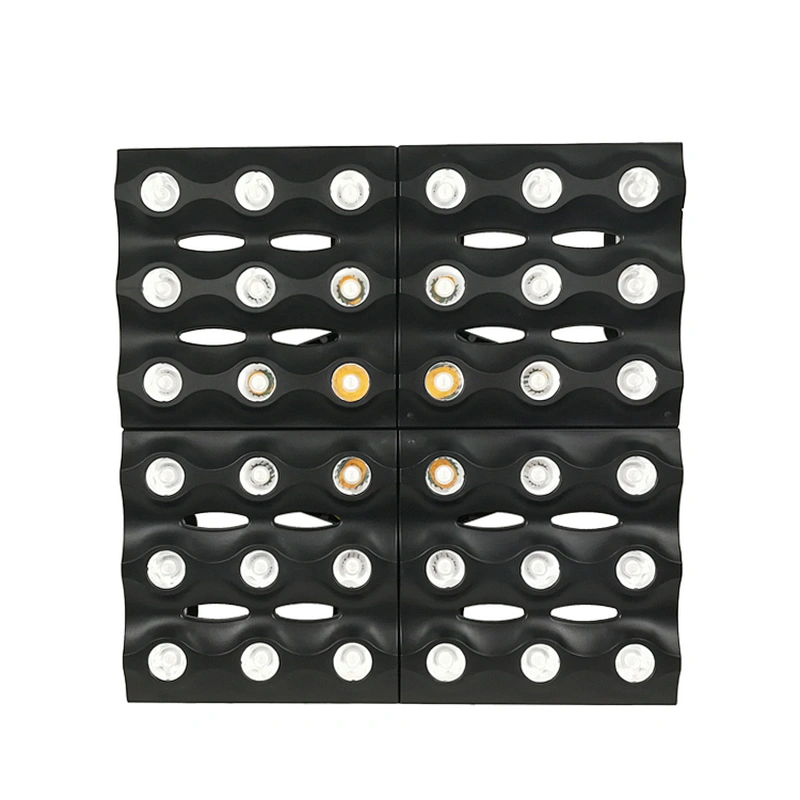

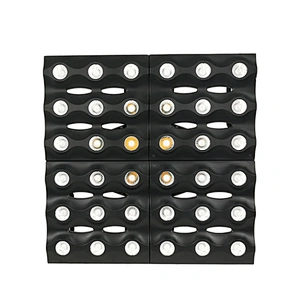

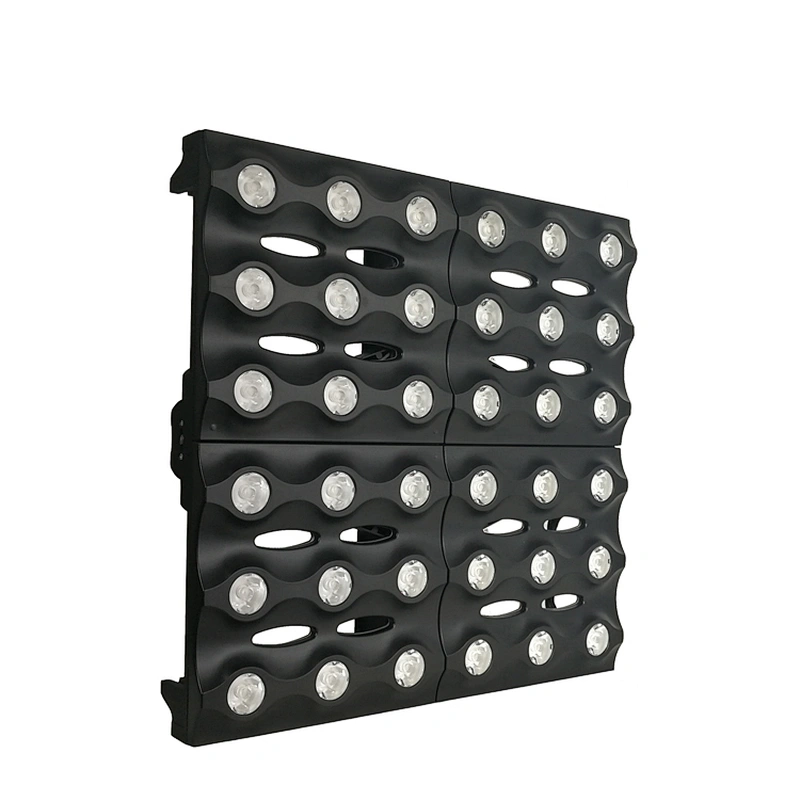

- Led matrix 363
- User manual
- Power cable
- Optional Accessories
- Flight case: 4pcs-in-1
- Clamp
- Safety rope
- DMX wire
Send Message
Related Products
Model NO. SL-3073

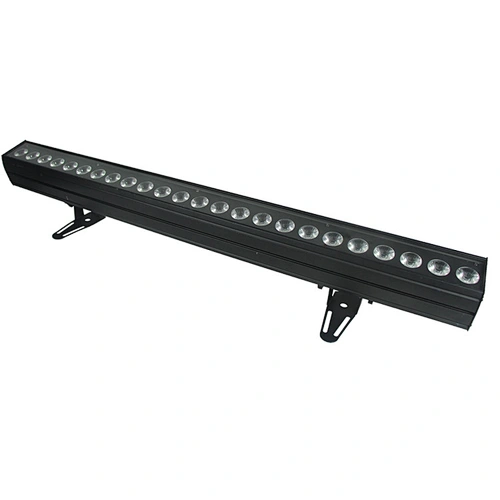

Model NO. SL-3101A-4IN1
