- Optical System
- Light source:12X3W CREE and 72X0.3W SMD5050 LED
- LED life expectancy: 50,000 - 80,000 hours
- Lens angle: 4°
- Dynamic Effects
- LED pixel can be controlled individually
- 0-100% smooth linear dimming system
- Shutter: 1-18 times/sec high speed strobe, speed adjustable
- With random strobe and pulse effect
- Control and Program
- DMX512, master-slave, sound control, auto programs
- Control channel: 6/9/84/89 CH
- Built-in pre-program
- Marco function
- Electrical Specification and Connections
- Input voltage: AC 90-240 V, 50-60 Hz, auto ranging

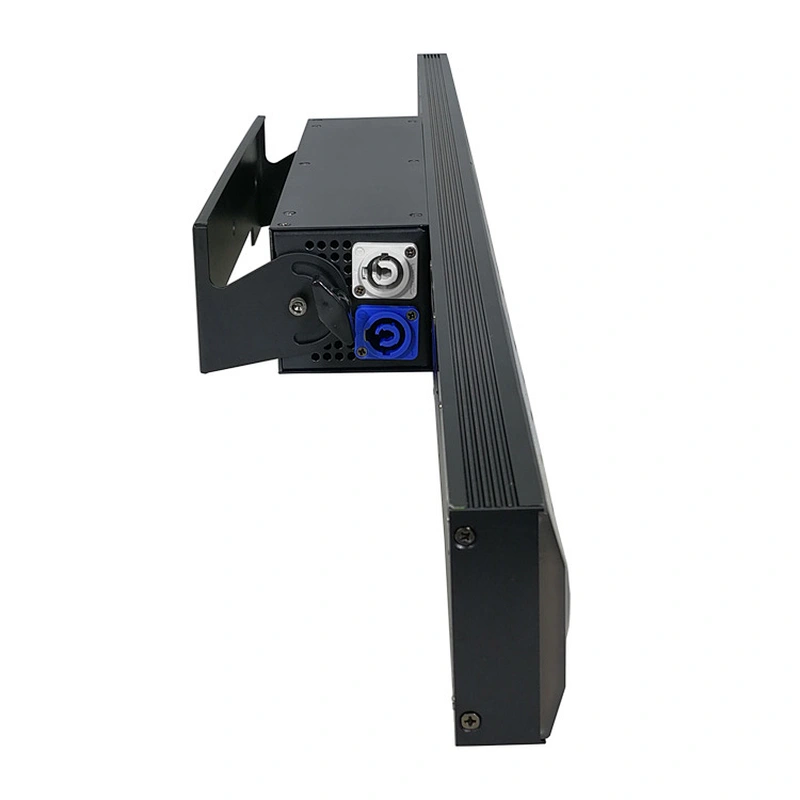

- Power connector in/out: Powercon
- Data connector in/out: 3-pin XLR
- Working Environment
- Ambient temperature: -25℃ ~ +45℃ (-13℉ ~ +113℉)
- Protection grade: IP20
- Approvals
- CE, RoHS,
- If any other certificates are required, confirm with us please
- Product and Packing Dimensions
- Product: 935*75*150 mm (36.8*3.0*5.9inch)
- Box: 970*180*120 mm (38.2*7.1*4.7inch)
- Net weight: 3.5 kg (7.7 lbs)
- Gross weight: 4.0 kg (8.8 lbs)
- Carton (4pcs-in-1): 990*400*270mm, 19kg (39.0*15.8*10.7 inch, 41.9 lbs)
- Packing List
- Led matrix bar 2in1
- User manual
- Power cable
- Optional Accessories
- Flight case: 6pcs-in-1
- Clamp
- Safety rope
- DMX wire
