- Optical System

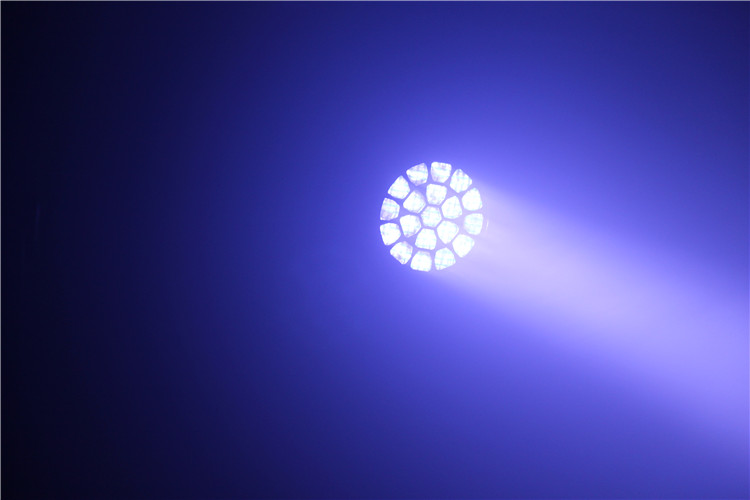

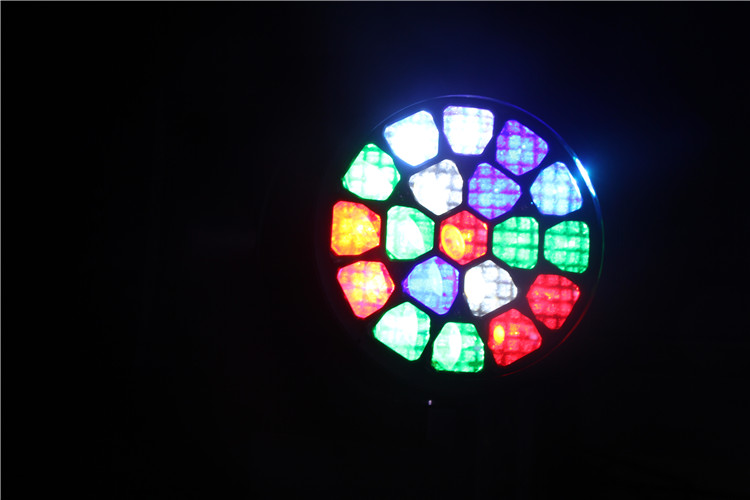

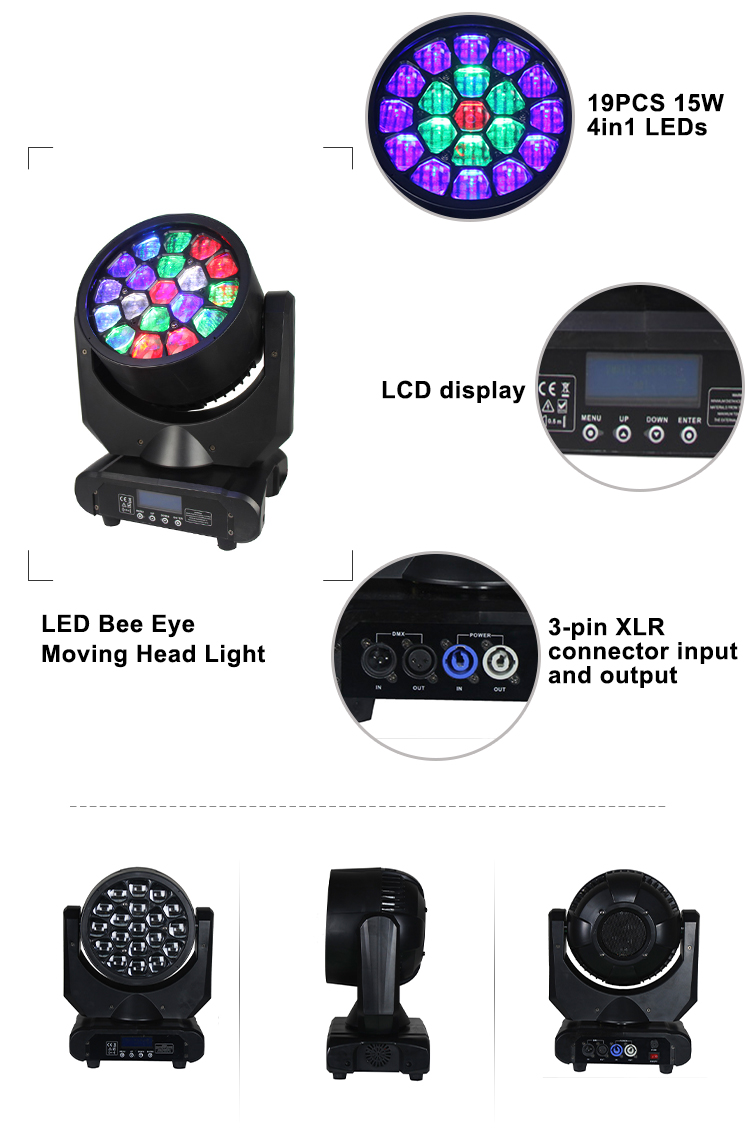

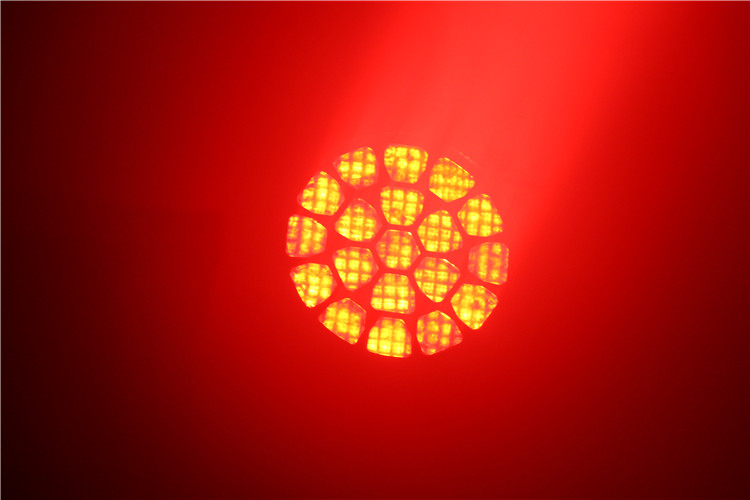

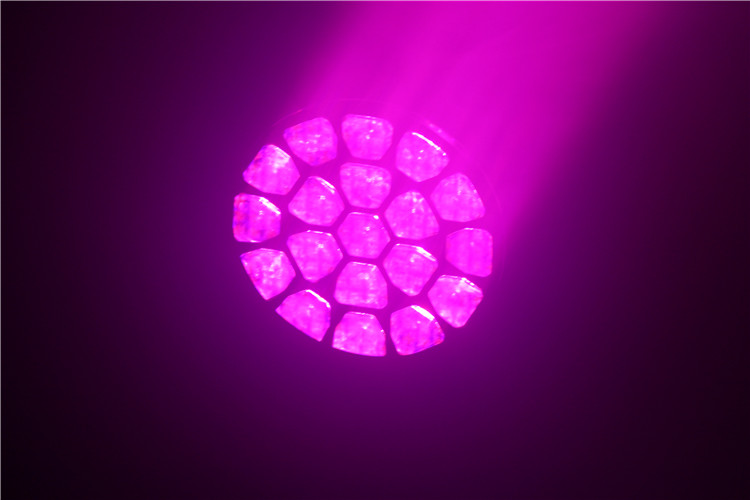

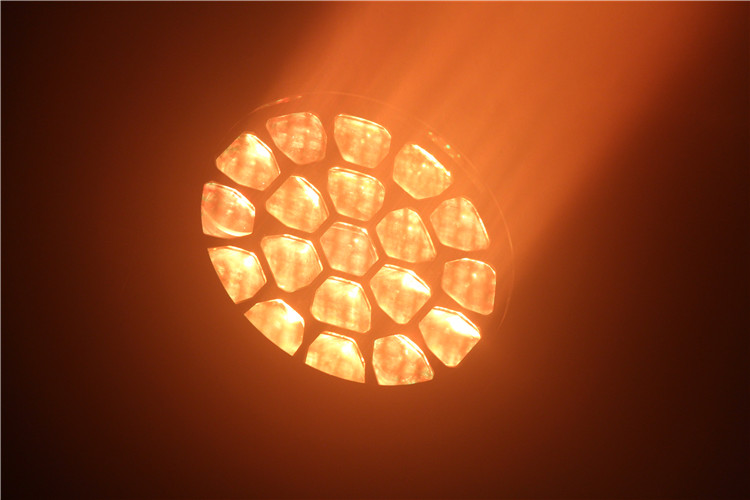

- Light source: 19PCS 12W RGBW 4in1 OSRAM LEDs
- LED lifespan: 50,000 hours
- Zoom angle: 6°-30°
- Dynamic Effects
- Pixel control: 9 pixel (each LED as a pixel), individually controllable
- Mixing color smooth and uniform
- Built macro function
- Beam, swirl, kaleidoscope three different effects
- 0-100% smooth linear dimming
- Shutter: 1-25 times/s strobe, random and plus strobe
- Control and Program
- LCD display
- Protocol: DMX512, master-slave, sound control, auto
- Control channels: 17/52 CH
- Pan/Tilt resolution: 16 bit smooth scanning
- Movement
- Pan movement: 540°
- Tilt movement: 270°
- Scanning position memory
- Automatic Pan/Tilt position correction
- Electrical Specification and Connections
- Power supply: Electronic ballasts and switching
- Input voltage: AC 100-240 V, 50/60 Hz
- Power consumption: 300 W

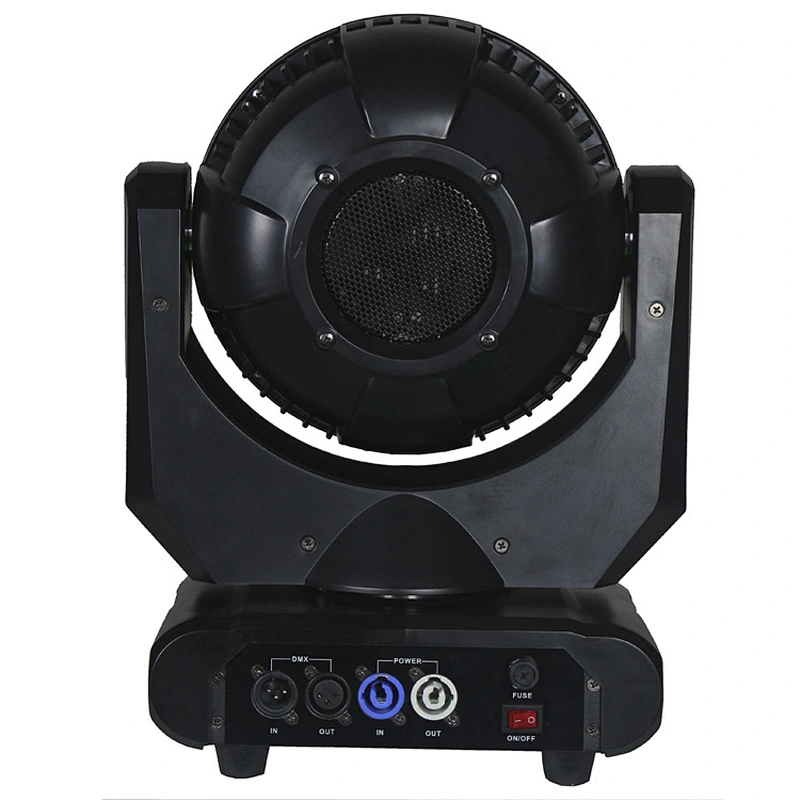

- Power connector in/out: Powercon
- Data connector in/out: 3-pin XLR
- DB rate: 55db(3”)
- Working Environment
- Ambient temperature: -20℃ ~ +45℃ (-4℉ ~ +113℉)
- Protection grade: IP20
- Approvals
- CE & RoHS
- If any other certificates are required, confirm with us please
- Product and Packing Dimensions
- Product: 300*190*390 mm (11.8*7.5*15.4 inch)
- Carton: 360*250*460 mm (14.2*9.8*18.1 inch)
- Net weight: 8 kg (17.6 lbs)
- Gross weight: 9.5 kg (20.9 lbs)
- Packing List

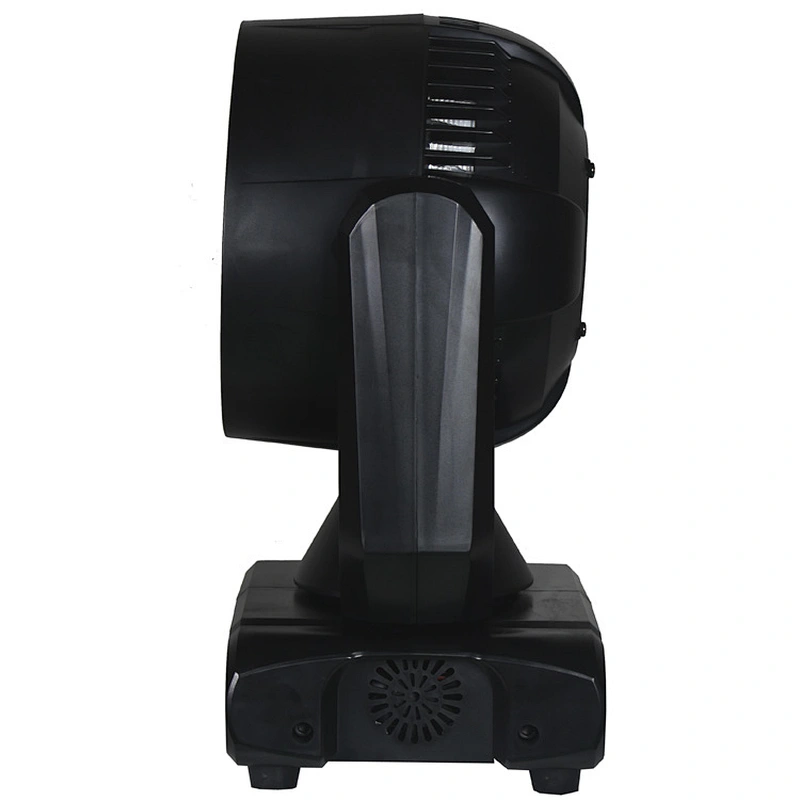

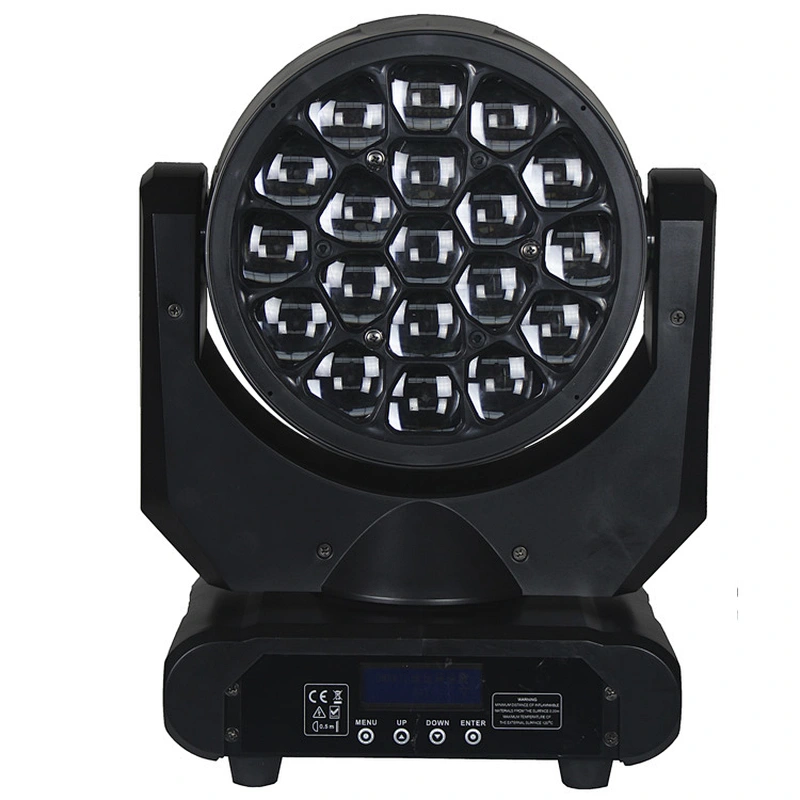

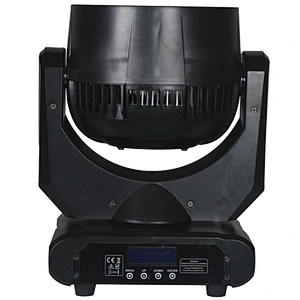

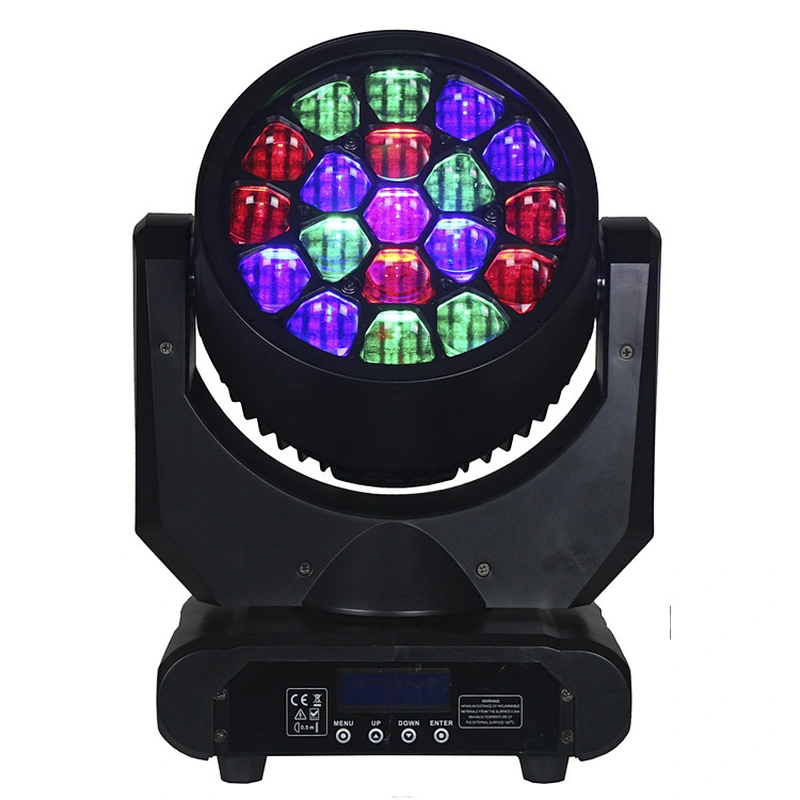

- BeeEye
- User manual
- Power cable
- 3-pin XLR connectors
- Optional Accessories
- Flight case: 2pcs in 1
- Clamp
- Safety rope
- DMX wire
