| Model No. | Light Source | Emitting Color | DMX Channel |
| SL-1031A | 8PCS 10W white LED | White | 14/20CH |
| SL-1031B | 8PCS 10W LED (2pcs Red, 2pcs Green, 2pcs Blue, 2pcs White) | RGBW | 14/20CH |
| SL-1031C | 8PCS 10W 4in1 LED | RGBW 4IN1 | 18/45CH |
- Optical System
- Light source: 8PCS 10W 4in1 LED(RGBW)
- LED lifespan: 50,000 hours
- Beam angle: 2°
- Dynamic Effects
- Pixel control: 8 pixel (each LED as a pixel), individually controllable
- Amazing streaming effect
- Multiple interlocking beam effect
- 10 kinds of inset built-in programs
- 8 kinds of default pixel macro function
- 0-100% electronic dimmer
- Shutter: 18 times/s strobe, plus strobe
- Control and Program

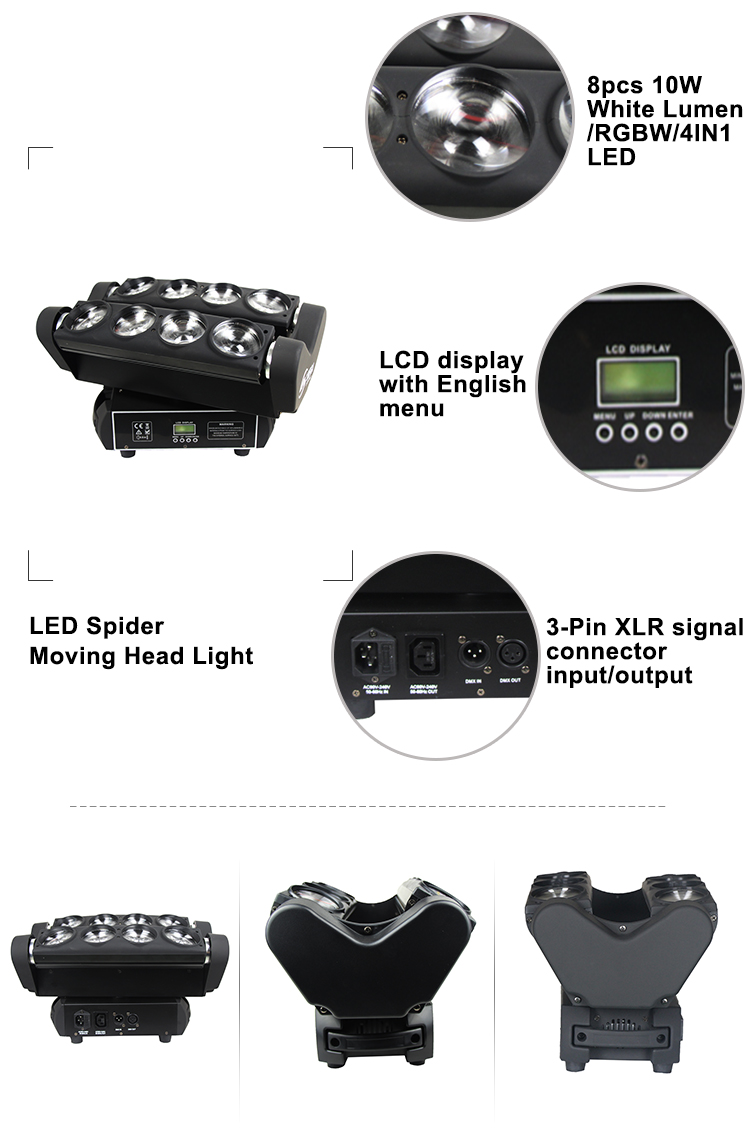

- LCD display with English menu
- Protocol: DMX512, master-slave, sound control, auto
- Control channels: 18/45 CH
- Pan/Tilt resolution: 16 bit smooth scanning
- Movement
- Pan movement: 540°
- Tilt movement: 145°
- Scanning position memory
- Automatic Pan/Tilt position correction
- Electrical Specification and Connections
- Power supply: Electronic ballasts and switching
- Input voltage: AC 100-240 V, 50/60 Hz
- Power consumption: 120 W

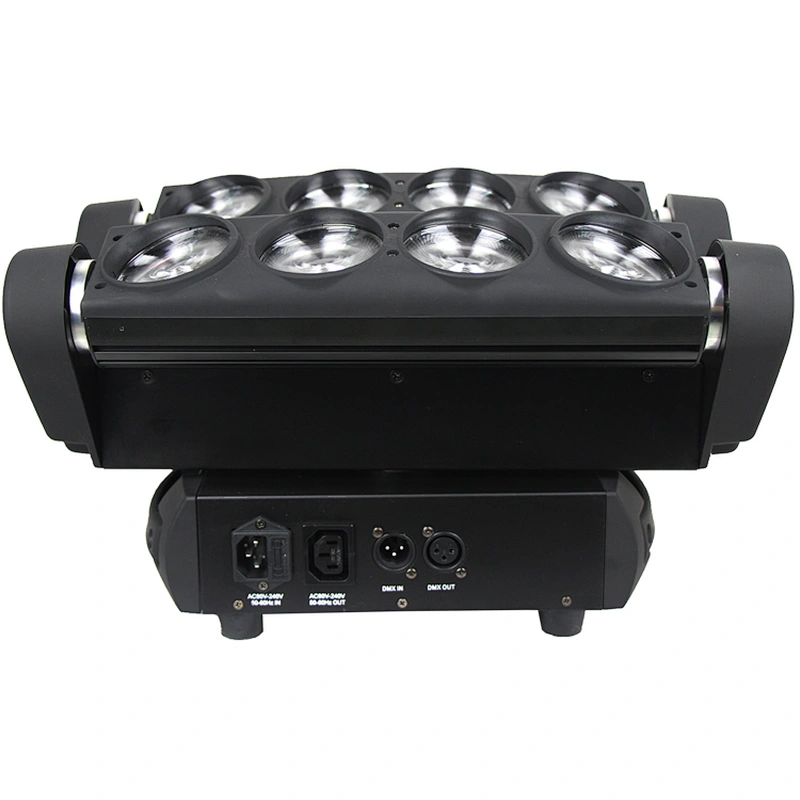

- Power connector in/out: IEC
- Data connector in/out: 3-pin XLR
- 1PC 1/4 fast locking
- Housing
- Head: Aluminum cooling system, no noise
- Bottom: Low-noise fan cooling system
- Working Environment
- Ambient temperature: -20℃ ~ +45℃ (-4℉ ~ +113℉)
- Protection grade: IP20
- Approvals
- CE & RoHS
- If any other certificates are required, confirm with us please
- Product and Packing Dimensions
- Product: 395*230*235 mm (15.6*9.1*9.3 inch)
- Carton: 465*320*290 mm (18.3*12.6*11.4 inch)
- Net weight: 7.5 kg (16.5 lbs)
- Gross weight: 8.4 kg (18.5 lbs)
- Packing List

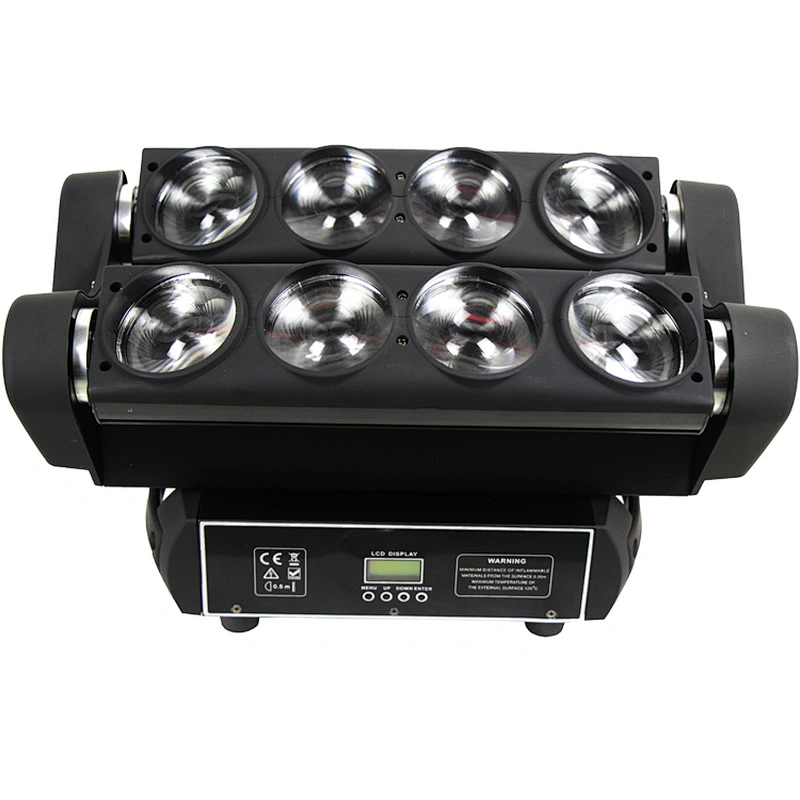

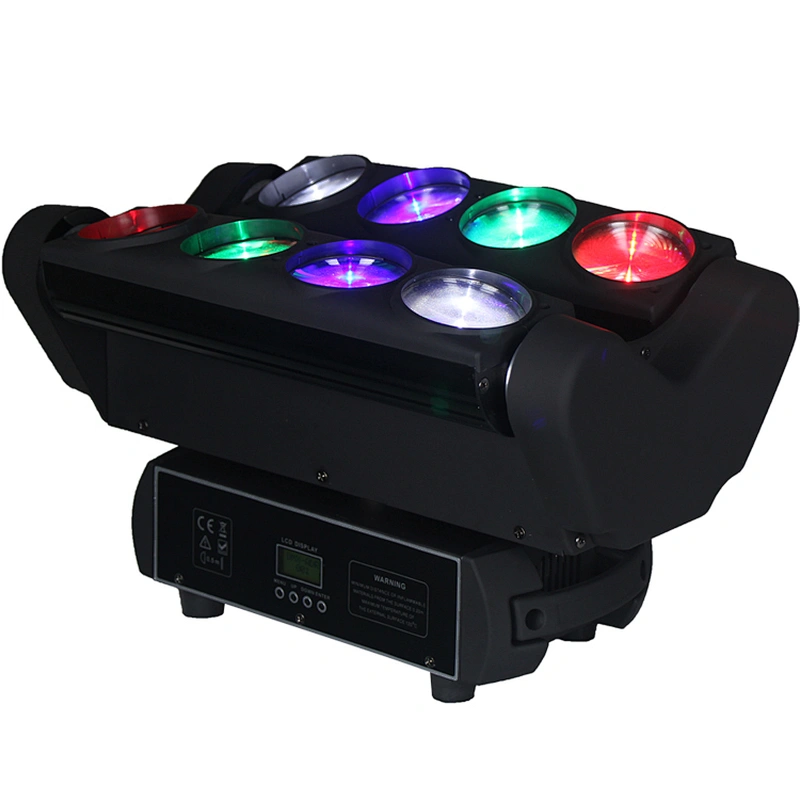

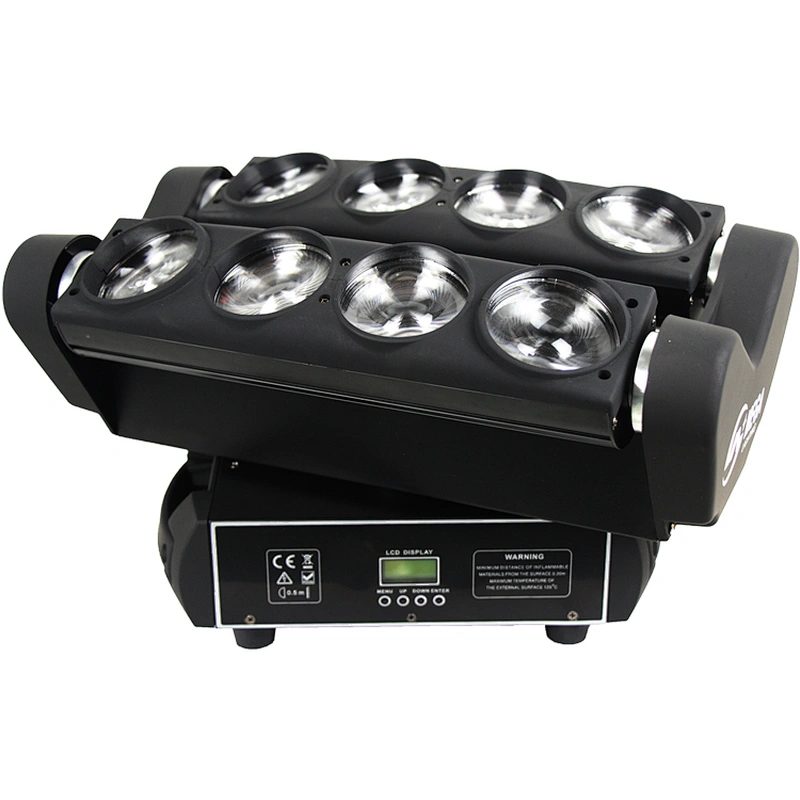

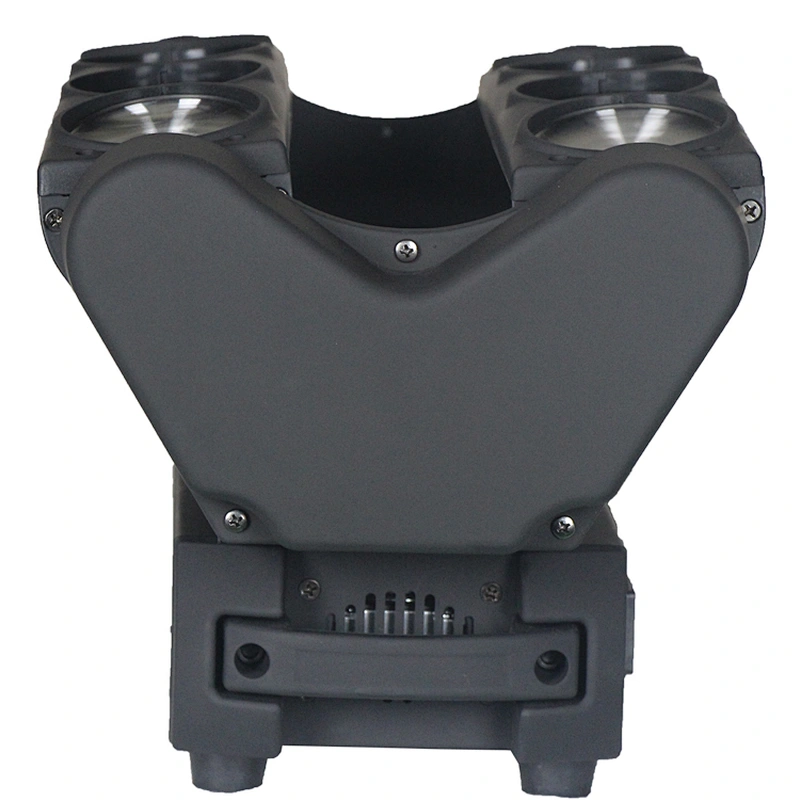

- SPIDER MOVING 4IN1
- User manual
- Power cable
- 3-pin XLR connectors
- Optional Accessories
- Flight case
- Clamp
- Safety rope
- DMX wire
