| Model No. | Light Source | Emitting Color | DMX Channel |

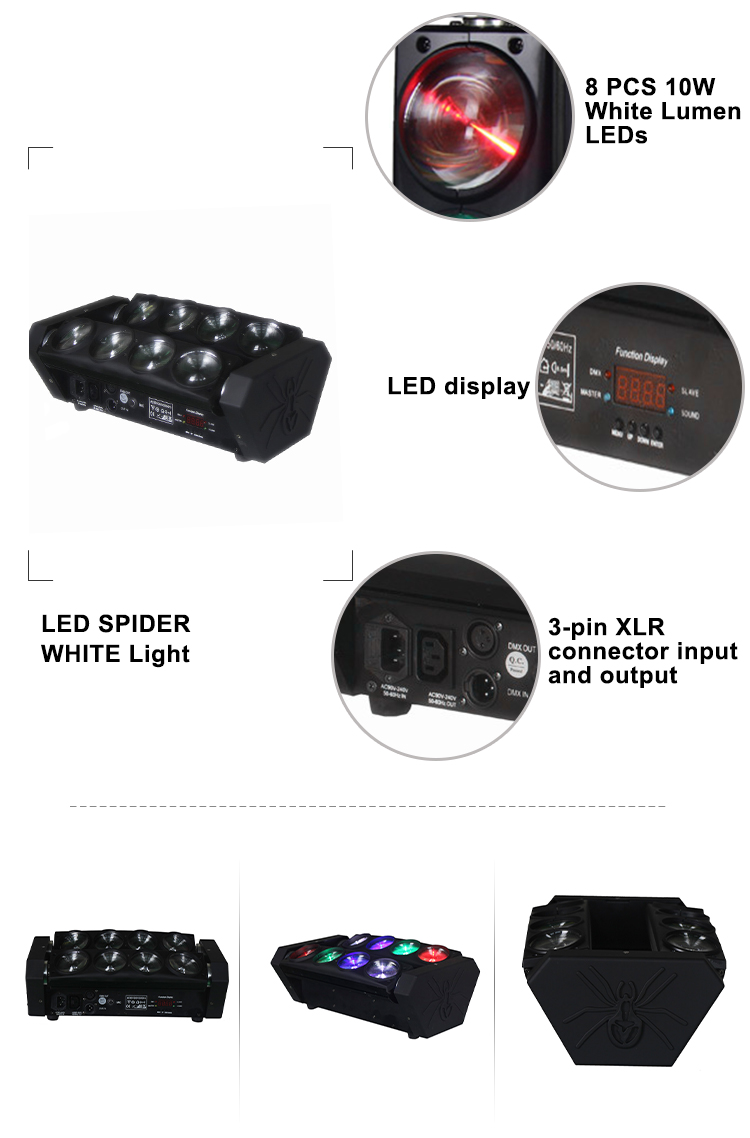

| SL-1028A | 8PCS 10W white LED | White | |
| SL-1028B | 8PCS 10W LED (2pcs Red, 2pcs Green, 2pcs Blue, 2pcs White) | RGBW | |
| SL-1028C | 8PCS 10W 4in1 LED | RGBW 4IN1 | 10/36CH |
- Optical System
- Light source: 8PCS 10W 4in1 LED(RGBW)
- LED lifespan: 50,000 hours
- Beam angle: 2°
- Dynamic Effects
- Pixel control: 8 pixel (each LED as a pixel), individually controllable
- Amazing streaming effect

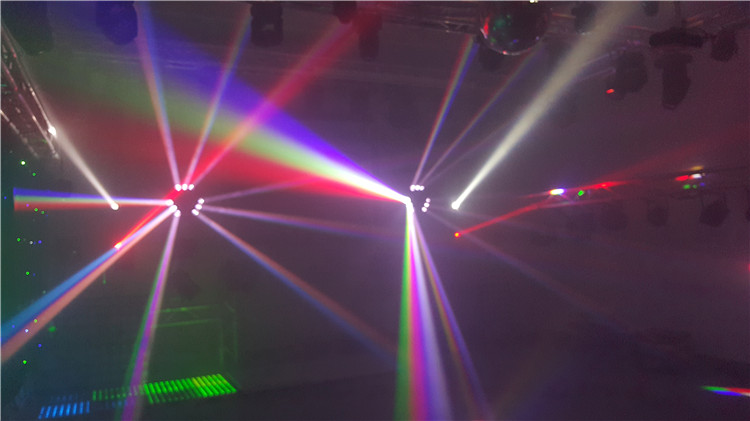

- Multiple interlocking beam effect
- 12 kinds of built-in default program and easy to operate
- 8 kinds of defalut pixel macro function
- 0-100% electronic dimmer
- Shutter: 18 times/s strobe, plus strobe
- Control and Program
- LED display with English menu
- Protocol: DMX512, master-slave, sound control, auto
- Control channels: 10/36 CH
- Pan/Tilt resolution: 16 bit smooth scanning
- Movement
- Pan movement: 540°
- Tilt movement: 145°
- Scanning position memory
- Automatic Pan/Tilt position correction
- Electrical Specification and Connections
- Power supply: Electronic ballasts and switching
- Input voltage: AC 100-240 V, 50/60 Hz
- Power consumption: 100 W

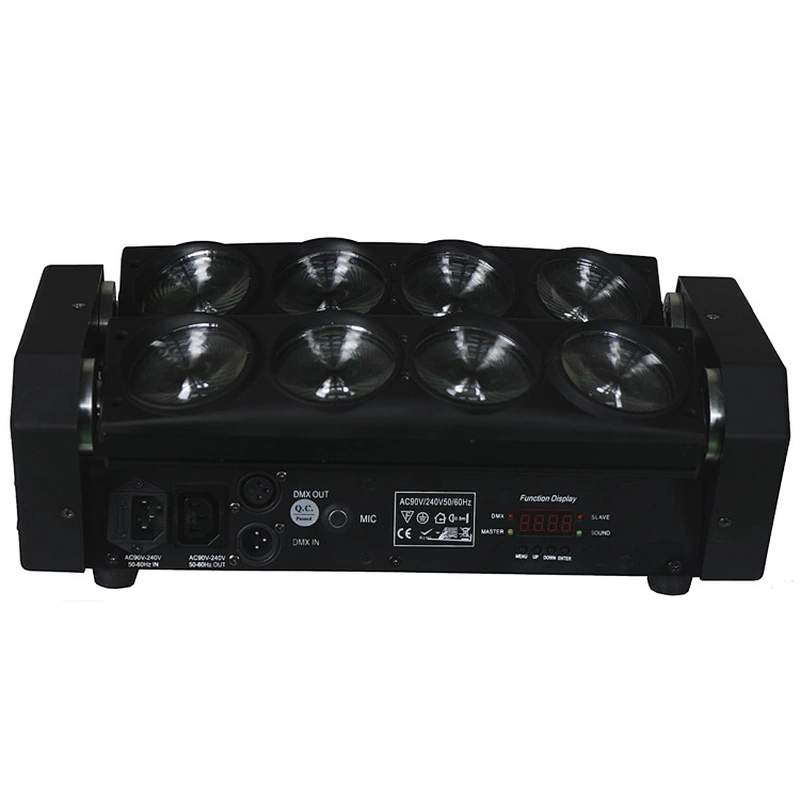

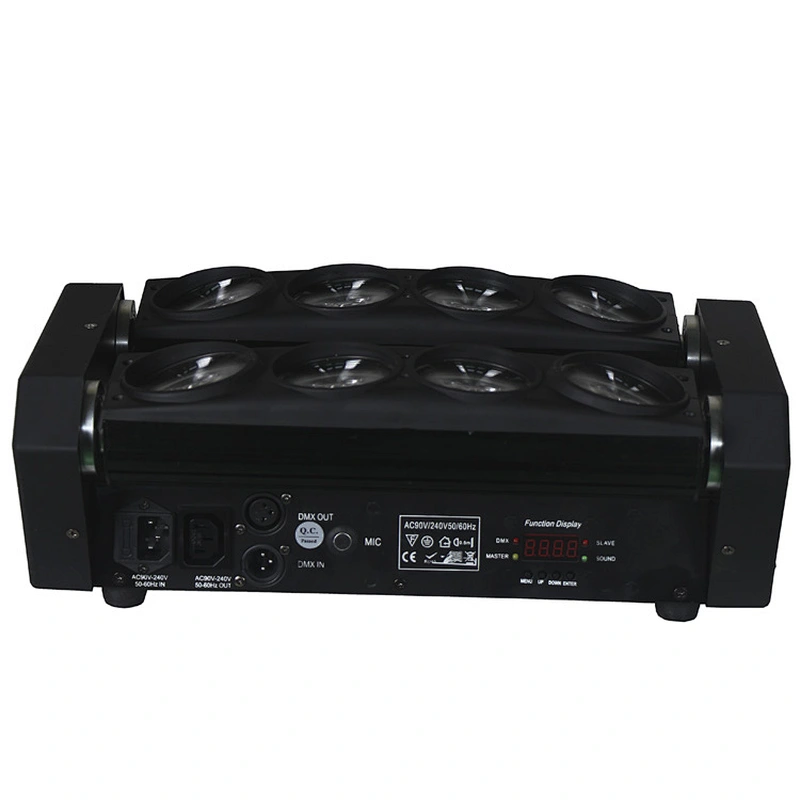

- Power connector in/out: IEC
- Data connector in/out: 3-pin XLR
- 1PC 1/4 fast locking
- Housing
- Head: Aluminum cooling system, no noise
- Bottom: Low-noise fan cooling system
- Working Environment
- Ambient temperature: -20℃ ~ +45℃ (-4℉ ~ +113℉)
- Protection grade: IP20
- Approvals
- CE & RoHS
- If any other certificates are required, confirm with us please
- Product and Packing Dimensions
- Product: 440*235*150 mm (17.3*9.3*5.9 inch)
- Carton: 470*320*245 mm (18.5*12.6*9.6 inch)
- Net weight: 4.8 kg (10.6 lbs)
- Gross weight: 6 kg (13.2 lbs)
- Packing List

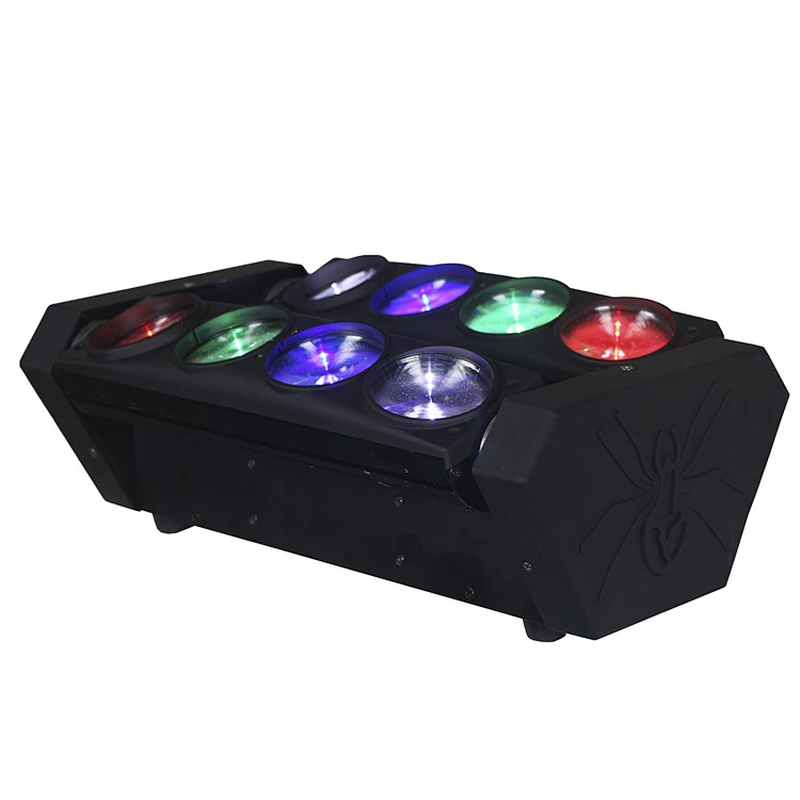

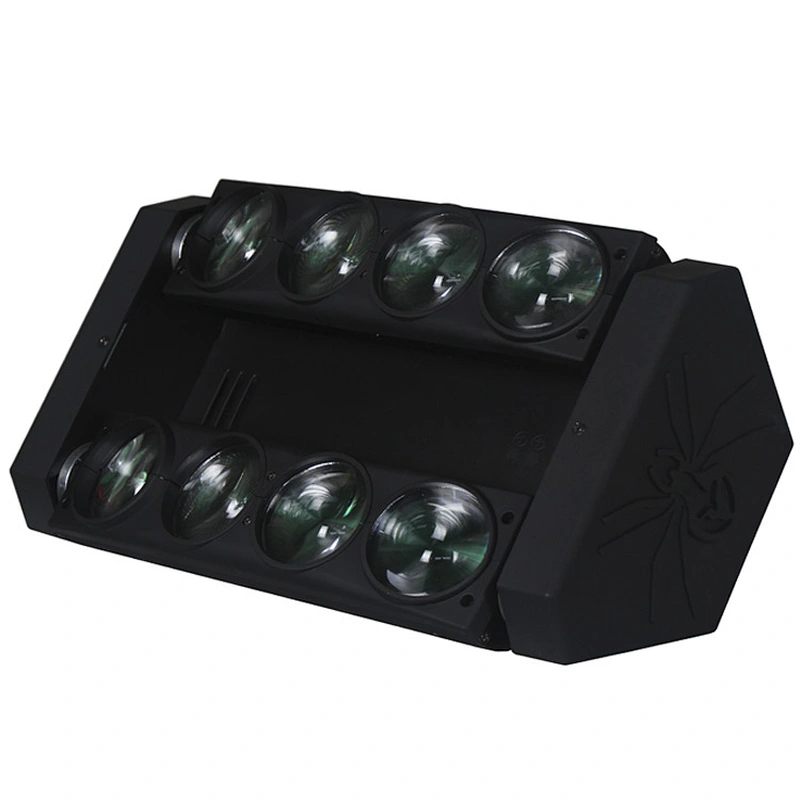

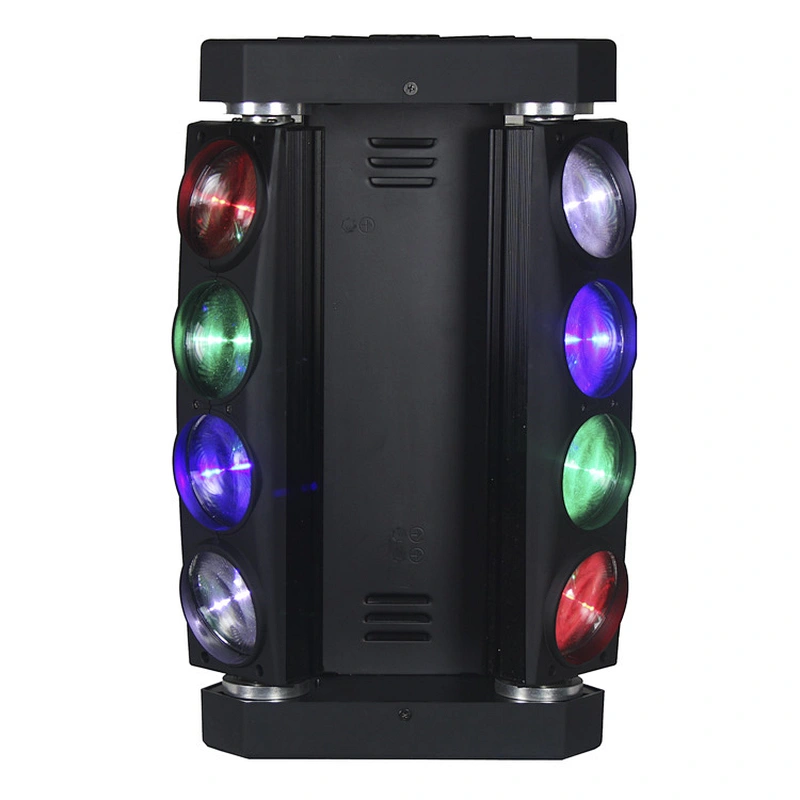

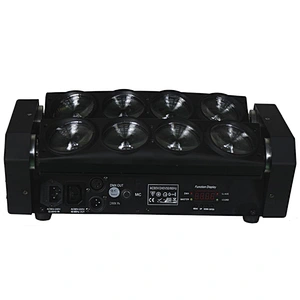

- SPIDER 4IN1
- User manual
- Power cable
- 3-pin XLR connectors
- Optional Accessories
- Flight case
- Clamp
- Safety rope
- DMX wire
